SPECIAL FEATURES
- All-inclusive: Detector for treasure hunters with highest demands – including all features
- Detection Depth: With this technology customers found objects down to 25 m (82 ft) deep
- Use Cases: Archaeology, Treasure Hunting, Natural Gold Prospecting, Cavity Detection
- Operating Modes: 3D Ground Scan, Magnetometer, Pinpointer, Mineral Scan, Tunnel Scan, Live Scan
- Detectable Objects: Treasure chests, voids, tombs, vessels, tunnels
USE CASES

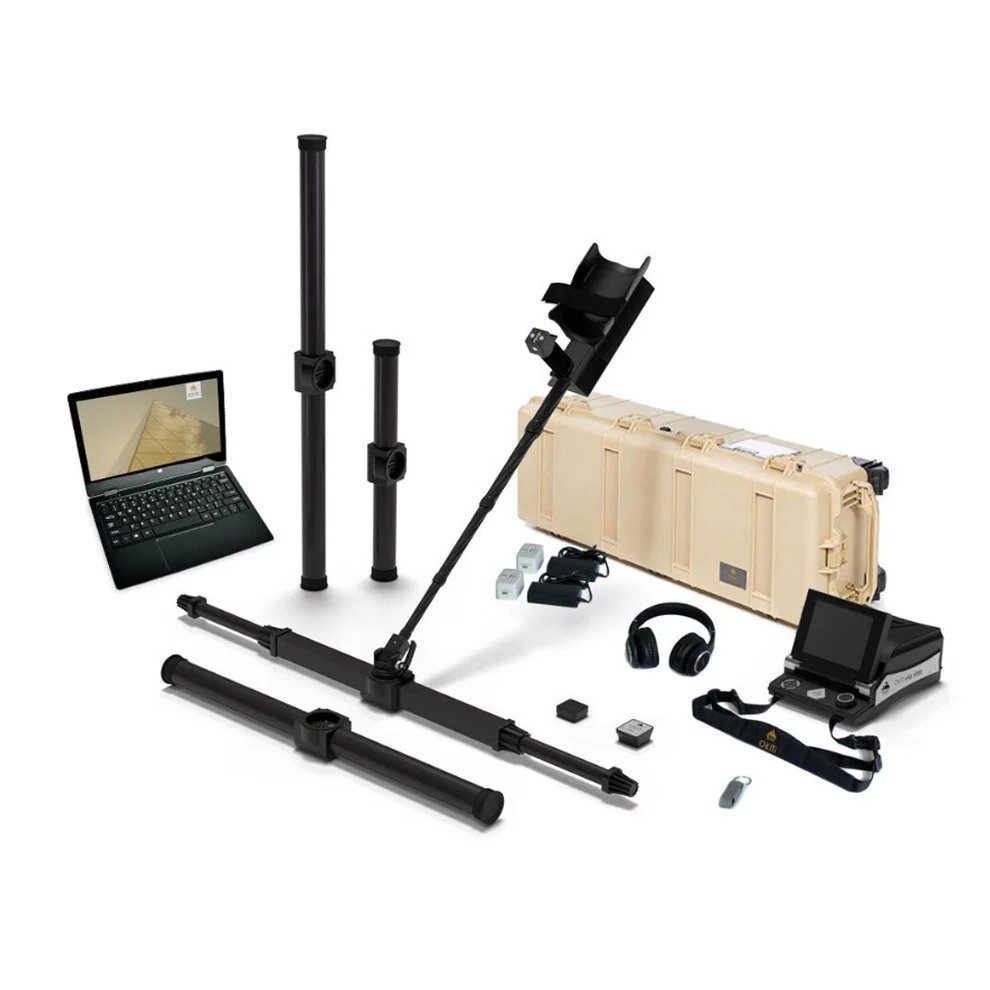

INCLUDES:
- 1x Control Unit
- 1x Wireless Telescopic Probe
- 1x Wireless Super Sensor
- 1x Wireless Live-Stream Sensor
- 1x Wireless Tunnel Sensor
- 1x Telescopic Rod
- 1x GPS Receiver Cap (removable)
- 1x Pre-configured Windows Notebook
- 1x USB Flash Drive with OKM Visualizer 3D Studio Professional Edition
- 1x Bluetooth Headphones incl. charging cable
- 1x Charger with charging cable
- 1x Travel Adapter Set
- 1x Waterproof and shock-resistant Protector Case
- 1x Quick Start Guide
- OPTIONAL Android Smart Glasses
- Bonus: One Hour OKM 3D Software Free Training, 1x OKM Power Pack
- 2 Year Limited Warranty
(The actual scope of delivery is subject to technical developments or specific model configurations and can differ from depicted components.)
More Details
Color Display and Touchscreen
The Control Unit with touchscreen and multilingual graphical user interface (GUI) is very easy to use. Different layouts and automatic brightness control allow the user to efficiently operate the detector even in varying ambient light conditions.
Telescopic Rod with Removable GPS Receiver
The Telescopic Rod can be adjusted to the user’s body size in just a few simple steps. Its armrest is equipped with additonal pads for more ergonomics during the treasure hunt. A protective cap is located on the handle, which can be replaced with the GPS Receiver included in the scope of delivery. At the lower end, the probes are quickly and easily mounted via a magnetic connector.
Exchangeable Probes for Various Purposes
Like many high-quality consumer and technical applications, the eXp 6000 probes are made of Carbon. This extremely rigid and light material allows treasure hunters to use the lightweight detector even more easily. Additionally, the probes establish a wireless data connection to the treasure detector to send the scan data directly to the Control Unit.
Telescopic Probe
This innovative probe can be extended to 124 cm (4 ft) and is perfectly designed to scan both large areas and narrow areas. As a result, treasure hunters need only one probe and avoid the necessity of carrying additional accessories.
Super Sensor
This specialized ground measuring probe is one of the best ground scanner accessories on the market. By using this antenna, discrimination and pinpointing of buried objects is possible with ease.
Tunnel Sensor
This measuring probe can be mounted to the 3D metal detector to detect hidden tunnels, chambers, cellars, shelters, caves and many other unterground cavities and structures.
Live-Stream Sensor
This ground scanning probe will stream measuring data immediately onto the display of the eXp 6000 to see underground objects “live”. Thus, the 3D ground scanner user can quickly survey a large area to find potential underground targets.
Various Operating Modes for Professional Applications
As top-notch detector, the professional 3D ground scanner eXp 6000 offers various operating modes in one device:
- 3D Ground Scan
- Pinpointer
- Mineral Scan
- Live Scan
- Magnetometer
- Tunnel Scan
3D Analysis via Detection Software
The treasure hunter gets a first glimpse of his scan data directly on the screen of the Control Unit during the measuring process. After finishing and saving the measurement, the user receives a graphical representation of the scan field with color-coded targets. This scan image can be viewed in 2D and 3D as well as rotated and scaled directly on the Control Unit touchscreen.
Optional Accessories: Smart Glasses, Android Tablet, Windows Notebook and Power Pack

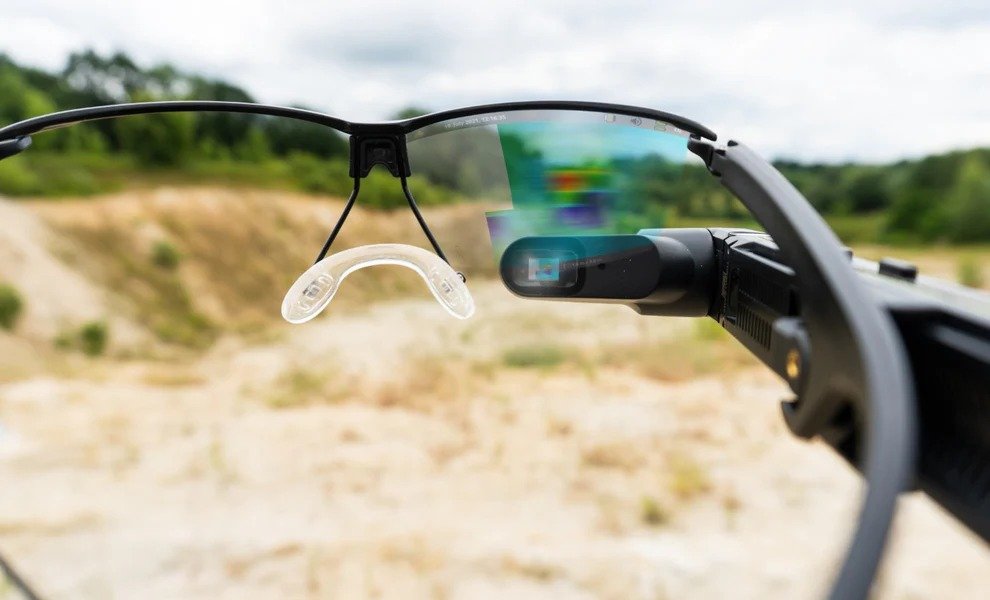

Besides the touchscreen, the eXp 6000 ground scanner user can also control the metal detector with the optional Video Eye Glasses. This allows the treasure hunter to focus even better on the environment and to notice any obstacles in the scan field during the measurement. In the projection directly in front of his eye, he simultaneously receives the already recorded scan data.
Both the Android tablet and the Windows notebook can be used in addition to the Control Unit and allow further users to view or observe the 3D ground surveys while scanning. Moreover, the Windows notebook with installed Visualizer 3D Studio detection software allows for detailed scan image analyses.
The Power Pack (version D/C) provides additional energy for the detector. With the additional Power Pack the treasure hunter is able to charge the Control Unit and the Telescopic Rod outdoors and even extend the operating time of the detector while scanning the ground.
Specifications
Control Unit
| Dimensions (H x W x D) | 120 x 210 x 280 mm |
| Weight | Approx. 2.34 kg |
| Voltage | 11.8 – 19 VDC, 50 W maximal |
| Safety Class | IP40 |
| Operating Time | Approx. 4 hours (fully charged, 25 °C) |
| Operating Temperature | -10 °C – 50 °C |
| Display | 6.5″ Diagonal, 1024 x 768 Pixel TFT Color, 650 cd/qm |
| Processing Unit | QuadCore AMD @ 2GHz, OpenGL4.2 HD Radeon GPU |
| Working Memory (RAM) | 4 GB Kingston HyperX |
| Data Memory | 8 GB SDCard, Class 10 |
| Feedback | Acoustic, visual |
| Storage Temperature | -20 °C – 60 °C |
| Air Humidity | 5 % – 75 % |
| Waterproof | No |
| Data Transmission Technology | WiFi 802.11n a/b/g, MIMO 2×2 |
| Data Transmission Rate | 11 Mbps – 54 Mbps |
| Operation Distance | Max. 4 m (line of sight to telescopic rod) |
Telescopic Rod
| Dimensions (H x W x L) | 210 x 135 x 680 – 1340 mm |
| Weight | About 1.76 kg |
| Voltage | 11.8 – 19 VDC, 22 W maximal |
| Safety Class | IP40 |
| Operating Time | Approx. 5 hours (fully charged, 25 °C) |
| Operating Temperature | -10 °C – 50 °C |
| Processing Unit | ARM Cortex M0+ @ 48 MHz |
| Working Memory (RAM) | 32 KB |
| Data Memory | 256 KB |
| Storage Temperature | -20 °C – 60 °C |
| Air Humidity | 5 % – 75 % |
| Waterproof | No |
| Data Transmission Technology | WiFi 802.11n a/b/g |
| Data Transmission Rate | 11 Mbps – 54 Mbps |
| Operation Distance | Max. 4 m (line of sight to control unit) |
Super Sensor
| Length | 950 mm |
| Weight | approx. 1.0 kg |
| Receiver | Dual / Hi-Gain – Vertical – Geophysical Phase Reader – EMSR |
| Sensor technology | SCMI-15-D |
Telescopic Probe
| Length | 820 – 1240 mm |
| Weight | approx. 1.04 kg |
| Receiver | Dual Geophysical Phase Reader – EMSR |
| Sensor technology | SCMI-15-D |
Tunnel Sensor
| Length | 500 mm |
| Weight | approx. 0.76 kg |
| Receiver | Dual Geophysical Phase Reader – EMSR |
| Sensor technology | SCMI-15-D |
Live-Stream Sensor
| Length | 600 mm |
| Weight | approx. 0.92 kg |
| Receiver | Hexa Geophysical Phase Reader – EMSR |
| Sensor technology | SCMI-15-D |
GPS Receiver
| Dimensions (L x W x H) | 50 x 55 x 27 mm |
| Weight | About 60 g |
| Input Voltage | 5 V DC |
| Input Current (Maximum) | 450 mA |
| Input Current (Typical) | 50 mA |
| Refresh Rate | 1 s |
| Cold Start | ＜40 s |
| Warm Start | ＜30 s |
| Horizontal Position Accuracy (Most Cases, Outdoor) | 2.7 m |
| Horizontal Position Accuracy (Free View, Clear Sky) | 0.9 m |
*The technical data are average values. Minor deviations are possible during operation.
