Special Features
- All-inclusive: Detector for treasure hunters with highest demands
- Detection depth: With this technology customers found objects down to 25 m (82 ft) deep
- Use cases: Archeology, treasure hunting, natural gold prospection, cavity detection
- Operating modes: 3D Ground Scan, Magnetometer, Pinpointer, Mineral Scan
- Detectable objects: Treasure chests, cavities, tunnels
Use Cases

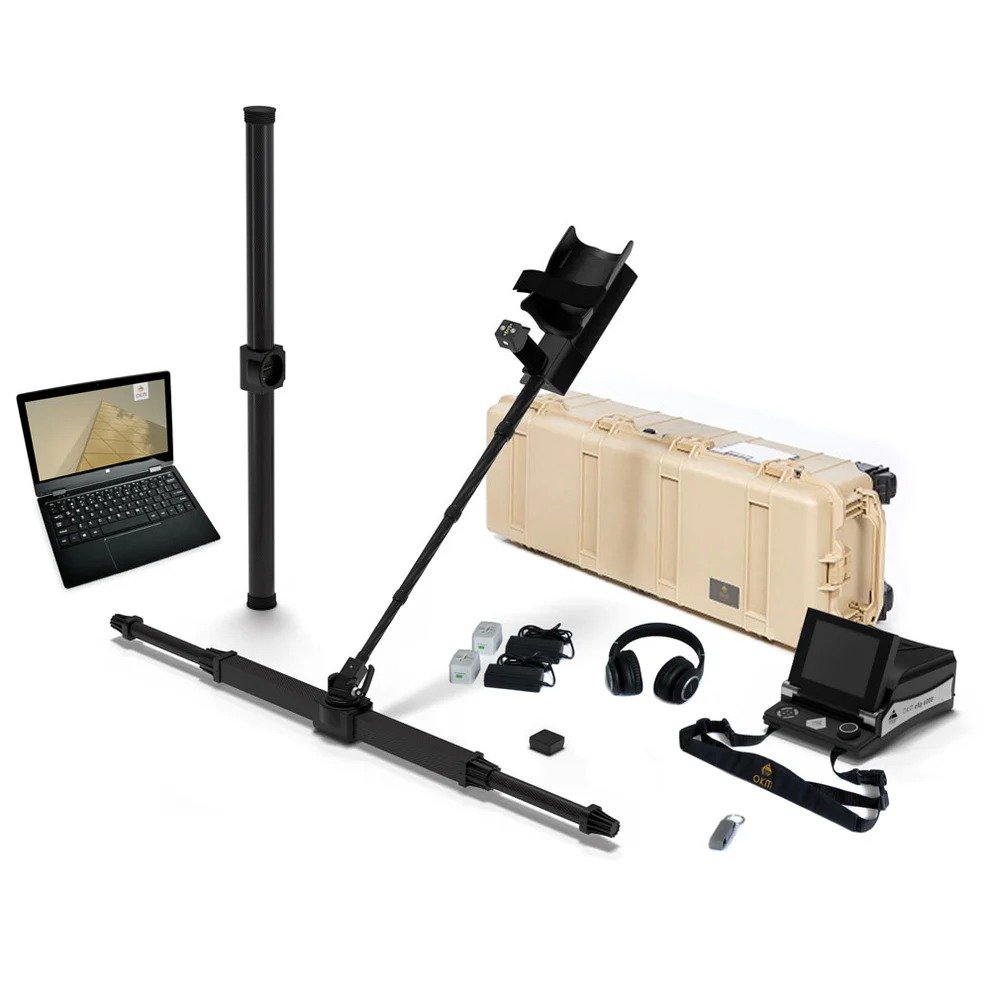

Includes:
- 1x Control Unit
- 1x Wireless Telescopic Probe
- 1x Wireless Super Sensor
- 1x Protective Cap
- 1x Pre-configured Windows Notebook
- 1x USB Flash Drive with OKM Visualizer 3D Studio Standard Edition
- 1x Bluetooth Headphones incl. charging cable
- 1x Charger with charging cable
- 1x Travel Adapter Set
- 1x Waterproof and shock-resistant Protector Case
- 1x Quick Start Guide
- OPTIONAL Wireless Tunnel Sensor
- OPTIONAL Wireless Live-Stream Sensor
- OPTIONAL Android Smart Glasses
- OPTIONAL GPS Receiver Cap (removable)
- Bonus: One Hour OKM 3D Software Free Training, 1x OKM Power Pack
- 2 Year Limited Warranty
(The actual scope of delivery is subject to technical developments or specific model configurations and can differ from depicted components.)
More Details
Color Display and Touchscreen
The Control Unit with touchscreen and multilingual graphical user interface (GUI) is very easy to use. Different layouts and automatic brightness control allow the user to efficiently operate the detector even in varying ambient light conditions.

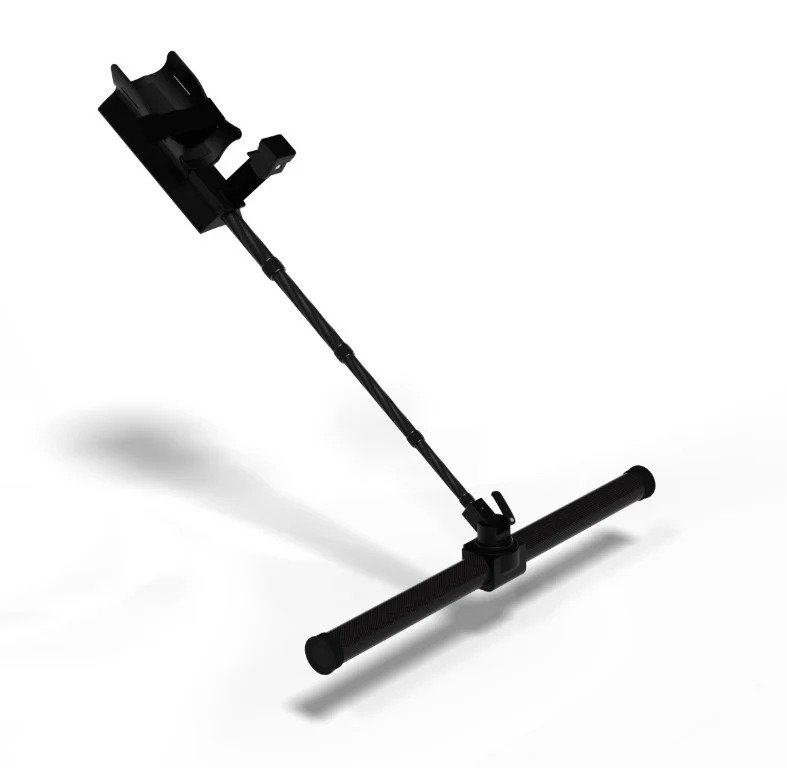

Height-adjustable Telescopic Rod
(Telescopic Rod with arm rest and handle with trigger for convenient treasure hunting.)
The Protective Cap can be replaced by a GPS Receiver (optional accessory).
The Telescopic Rod can be adjusted to the user’s body size in just a few simple steps. Its armrest is equipped with additonal pads for more ergonomics during the treasure hunt. At the lower end, the probes are quickly and easily mounted via a magnetic connector.

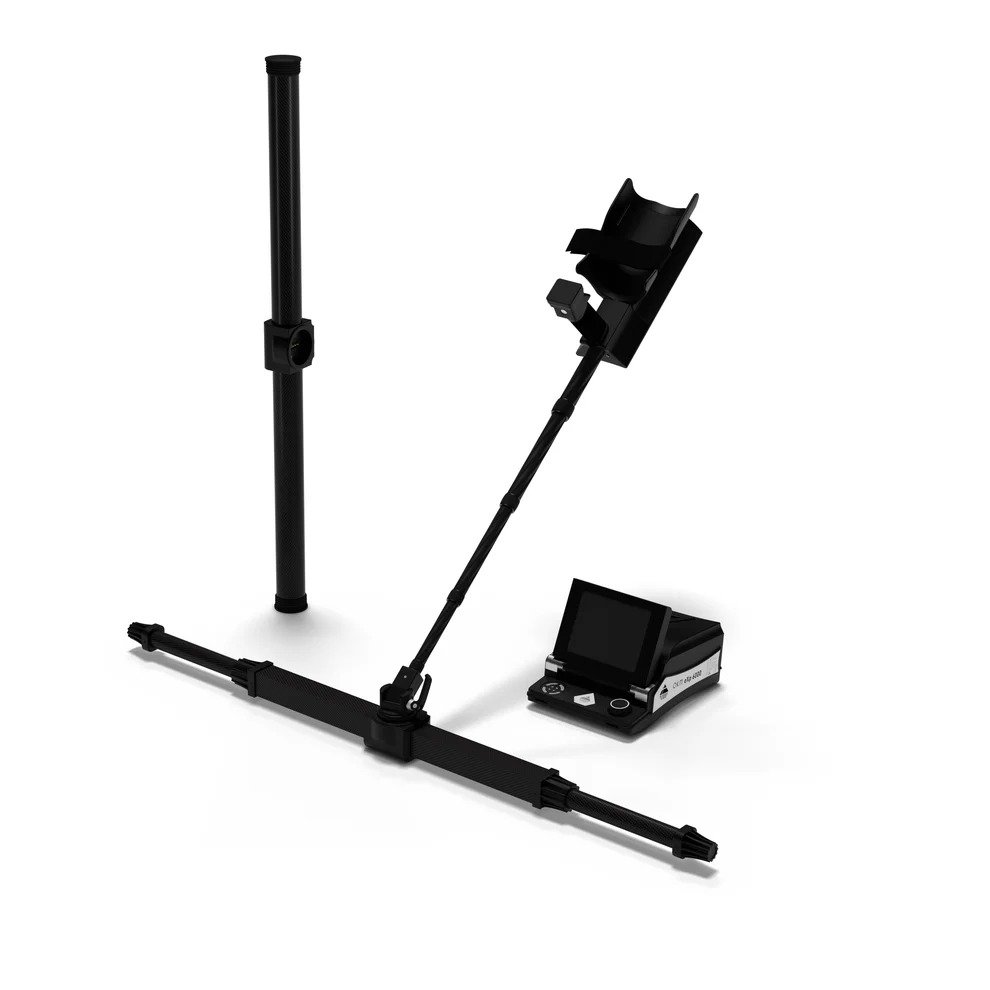

Interchangeable Probes for Various Purposes
Like many high-quality consumer and technical applications, the eXp 6000 probes are made of Carbon. This extremely rigid and light material allows treasure hunters to use the lightweight detector even more easily. Additionally, the probes establish a wireless data connection to the treasure detector to send the scan data directly to the Control Unit.
Telescopic Probe
This innovative probe can be extended to 124 cm (4 ft) and is perfectly designed to scan both large areas and narrow areas. As a result, treasure hunters need only one probe and avoid the necessity of carrying additional accessories.

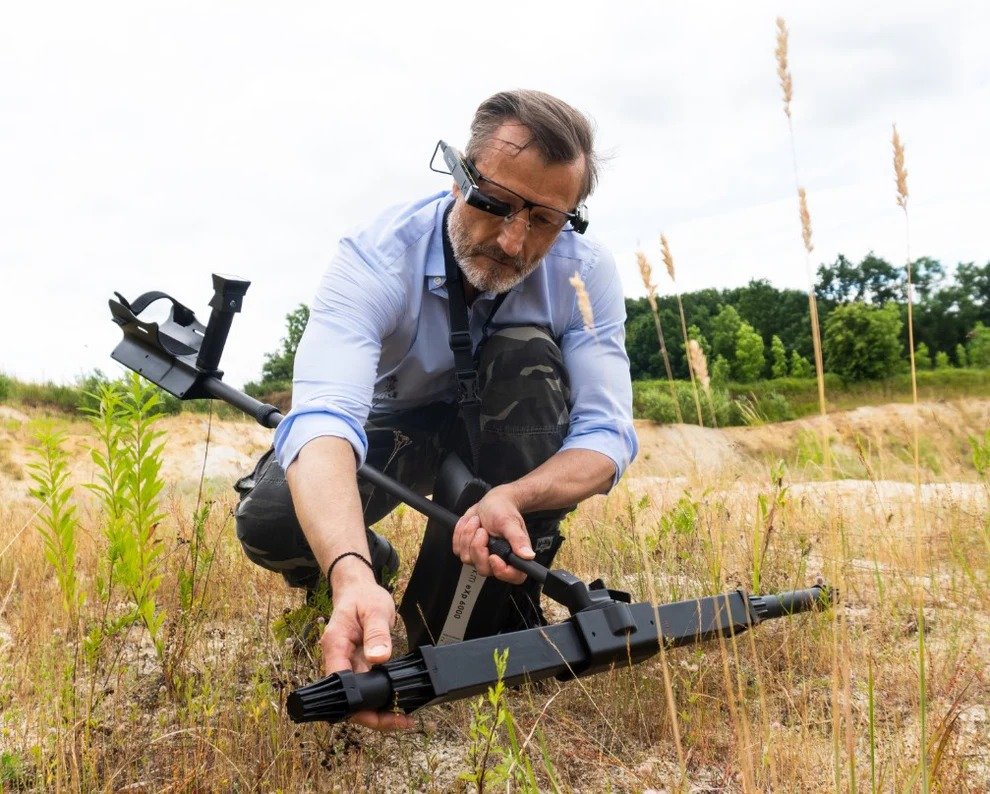

Super Sensor
This specialized ground measuring probe is one of the best ground scanner accessories on the market. By using this antenna, discrimination and pinpointing of buried objects is possible with ease.
eXp 6000 Exclusive: Orientation Sensor
The orientation sensor assists treasure hunters in holding the probe correctly during the measurement. An icon on the screen and an acoustic signal warns as soon as the probe is held in a wrong angle. Only a correct orientation of the probe guarantees reliable measurements.
Various Operating Modes for Professional Applications
- 3D Ground Scan
- Pinpointer
- Mineral Scan
- Magnetometer
3D Analysis via Detection Software
The treasure hunter gets a first glimpse of his scan data directly on the screen of the Control Unit during the measuring process. After finishing and saving the measurement, the user receives a graphical representation of the scan field with color-coded targets. This scan image can be viewed in 2D and 3D as well as rotated and scaled directly on the Control Unit touchscreen.
Optional Accessories: Android Tablet, Smart Glasses and Power Pack
Besides the Windows notebook, detectorists can use the Android tablet to view or observe the 3D ground surveys while scanning.
The Power Pack (version D/C) provides additional energy for the detector. With the additional Power Pack the treasure hunter is able to charge the Control Unit and the Telescopic Rod outdoors and even extend the operating time of the detector while scanning the ground.
Specifications
Control Unit
| Dimensions (H x W x D) | 120 x 210 x 280 mm |
| Weight | Approx. 2.34 kg |
| Voltage | 11.8 – 19 VDC, 50 W maximal |
| Safety Class | IP40 |
| Operating Time | Approx. 4 hours (fully charged, 25 °C) |
| Operating Temperature | -10 °C – 50 °C |
| Display | 6.5″ Diagonal, 1024 x 768 Pixel TFT Color, 650 cd/qm |
| Processing Unit | QuadCore AMD @ 2GHz, OpenGL4.2 HD Radeon GPU |
| Working Memory (RAM) | 4 GB Kingston HyperX |
| Data Memory | 8 GB SDCard, Class 10 |
| Feedback | Acoustic, visual |
| Storage Temperature | -20 °C – 60 °C |
| Air Humidity | 5 % – 75 % |
| Waterproof | No |
| Data Transmission Technology | WiFi 802.11n a/b/g, MIMO 2×2 |
| Data Transmission Rate | 11 Mbps – 54 Mbps |
| Operation Distance | Max. 4 m (line of sight to telescopic rod) |
Telescopic Rod
| Dimensions (H x W x L) | 210 x 135 x 680 – 1340 mm |
| Weight | About 1.76 kg |
| Voltage | 11.8 – 19 VDC, 22 W maximal |
| Safety Class | IP40 |
| Operating Time (full charge, 25°C) | Approx. 5 hours |
| Operating Temperature | -10°C to 50°C |
| Processing Unit | ARM Cortex M0+ @ 48 MHz |
| Working Memory (RAM) | 32 KB |
| Data Memory | 256 KB |
| Storage Temperature | -20°C to 60°C |
| Air Humidity | 5% – 75% |
| Waterproof | No |
| Data Transmission Technology | WiFi 802.11n a/b/g |
| Data Transmission Rate | 11 Mbps – 54 Mbps |
| Operation Distance (line of sight to Control Unit) | Max. 4 m |
Super Sensor
| Length | 950 mm |
| Weight | approx. 1.0 kg |
| Receiver | Dual / Hi-Gain – Vertical – Geophysical Phase Reader – EMSR |
| Sensor technology | SCMI-15-D |
Telescopic Probe
| Length | 820 – 1240 mm |
| Weight | approx. 1.04 kg |
| Receiver | Dual Geophysical Phase Reader – EMSR |
| Sensor technology | SCMI-15-D |
*The technical data are average values. Minor deviations are possible during operation.
