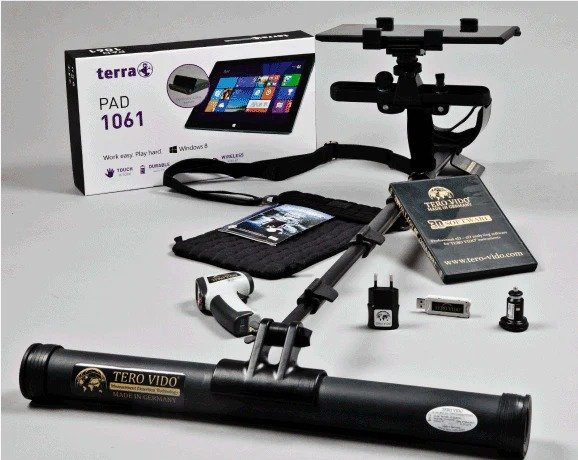

Includes:
- Tablet with pre-installed software Tero Vido 3D

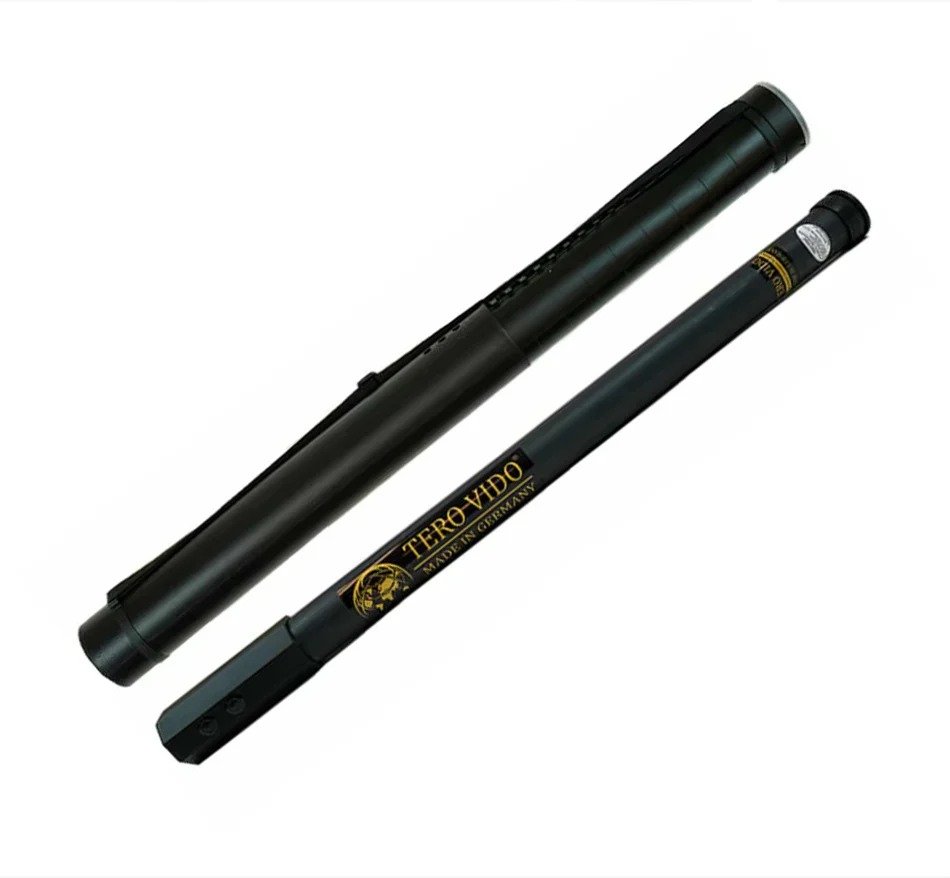

- Sensor: Vertical 85 cm
- Sensor 2: Horizontal, 50 cm
- Carrying rod for horizontal sensor
- USB-Dongle for data exchange between sensor and computer
- Charging cable and adapter for USB 12 V DC and 220 V AC
- Manual and Quick Start Guide
- Flexible tablet carrying case with touch-sensitive screen protection
- Solid transport box for sensors and tablet, Peli case – waterproof

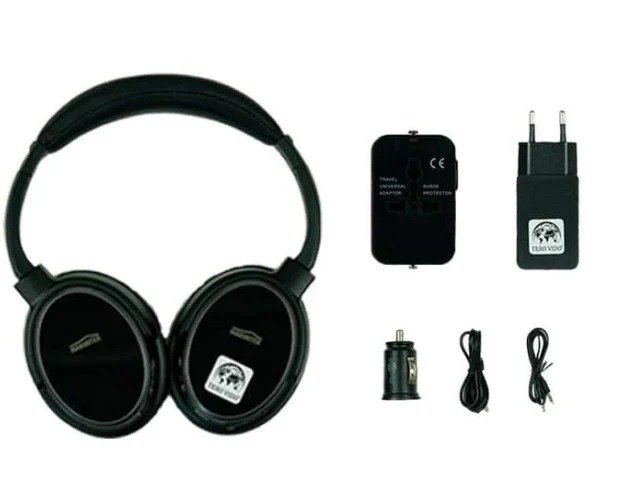

- Headphones (Bluetooth/WiFi)
- 2 Year Limited Warranty
Special Features
- Metal or void detection up to a depth of 18m
- Best on the market achieved 3D scan resolution
- Latest real-time DSP technology (DSP = digital signal processing)
- The latest development with a 3 axis sensor
- Integrated Magnetometer
- Multilingual interface
- Weight is low and easily portable
- Immediate and complete use straight out of the box
- Energy efficient with less charging time and longer service life
- Built-in high capacity battery
- Fast and simple wireless connection to your tablet or PC
- Free and automatic software updates
More Details

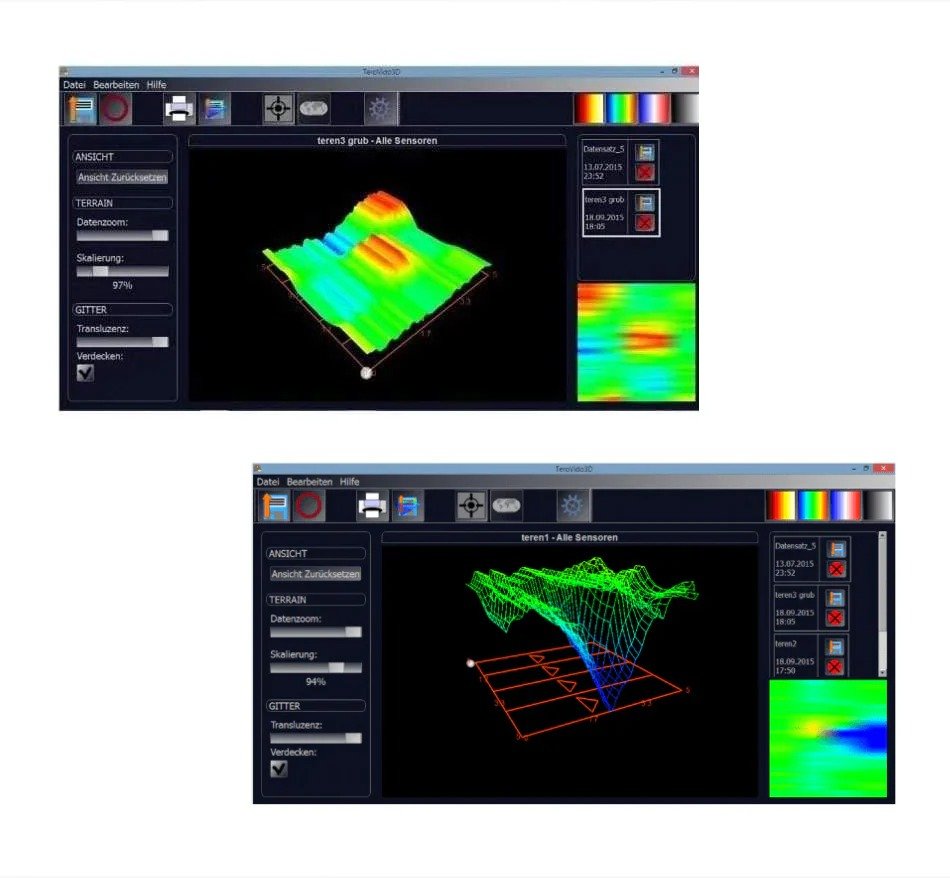

The whole device has been developed and manufactured in Germany. This detector helps you to discover and discriminate all kinds of metal. The included software shows if you found magnetic metals like iron or steel, or non-magnetic precious metals such as gold, silver or copper. Furthermore, the Tero Vido System is best suited to detect and locate underground voids, such as bunkers, graves, tunnels or other rooms.
One thing that makes the Tero Vido System quite special, besides the exact localization, is the deep penetration of the ground. Depending on the size of the object, significant depths of up to 18m can be reached. The multi-language user interface of the proprietary software is currently available in English, German, French, Russian, Arabic, Turkish, Spanish, Greek, Romanian and Bulgarian. More languages are coming soon. The automatic and free software updates contain, besides software improvements also further new languages.
Specifications
Probes
| Sensors | 3-‐axis digital sensors |
Built-in rechargeable battery
| Type | LiPo rechargeable battery |
| Performance | parameters 800 mAh 4,2V |
| Internal | operating voltage 3,0V |
| Battery | run-‐time 15h |
| Charging | time 1h with mains adapter, 4h with in-‐car charger |
Charger
| Input voltage | 240/110 V or 12 V (in-‐carcharger) |
| Charging current | 5 V/ 500 mA max |
Measurement and weight of probes
| Horizontal Probe 100 | 100 cm x 5 cm, 1.2 kg |
| Horizontal Probe 50 | 50 cm x 5 cm, 0.5 kg |
| Vertical Sample | 85 cm x 5 cm, 0.8 kg |
| IP Protection Category | IP 54 (splash-proof) |
| Storage Temperature | -20°C to +60°C |
| Operating Temperature | -10°C to +50°C |
| Relative Humidity | 5–95%, non-condensing |
| Notifications | Multi-color LED |
USB radio module for data tranfer
| Module Type | USB Radio Module for Data Transfer |
| Frequency Band | 2.4 GHz ISM Band |
| RF Channels | 126 RF Channels |
| Transmission Rate (Air) | 2 Mbps |
| Programmable Output Power | 0, -6, -12, or -18 dBm |
| Receiver Sensitivity | -82 dBm at 2 Mbps |
Processor
- Microcontroller ……………………………… 8-bit RISC-based Microcontroller
- Maximum working frequency ……………………………… 16MHz
- 1KB SRAM, 512K EEPROM
- 10-bit A/D converte
Data tranfer (Bluetooth)
- Frequency range ……………………………… 2,5 – 2,4835 GHz
- Maximum transfer rate ……………………………… 1 Mbps
- Receiver sensitivity ……………………………… -85 dBm
- Maximum reach in the open ……………………………… Approx. 10 m
Technical requirements for computer
- Operating system ……………………………… Windows 8.1. or newer
- Disk drive ……………………………… CD-‐ROM drive; alternatively: software download from company website
- USB ……………………………… USB 2.0 or higher
- Bluetooth ……………………………… For the Headphones
- Processor speed ……………………………… 1 GHz
- Working memory ……………………………… 1 GB RAM
- Disk space ……………………………… HDD 250 MB
- Graphic card ……………………………… DirectX9 compatible
Download User Manual
🎁Free Gifts
- Big Transport Bag
- Small Bag
- T-Shirt Green Big Logo Front (S, M, X,L, XL, XXL)
How to redeem it?
Once you’ve placed your order, please email us at info@metaldetectorspro.com with your order number and your preferred T-shirt size. The T-shirt will be included along with the 2 bags in your shipment.
