OKM eXp 7000 Professional Plus 3D Ground Scanner Metal Detector

HIGHLIGHTS:

All-inclusive: Multi-Sensor 3D Ground Scan and Multi-Frequency VLF.

Detection Depth: 3D Ground Scan down to 25 m (82 ft) + VLF down to 40 cm (12″).

Use Cases: Archaeology, Natural Gold Prospecting, Treasure Hunting, Cavity Detection.

Operating Modes: 3D Ground Scan, 3D VLF Scan, Mineral Scan, Tunnel Scan, Live Scan, Magnetometer, Pinpointer, VLF Metal Detection.

Detectable Objects: Artifacts, militaria, natural gold veins, treasure chests, cavities, tunnels, jewelry.

USE CASES

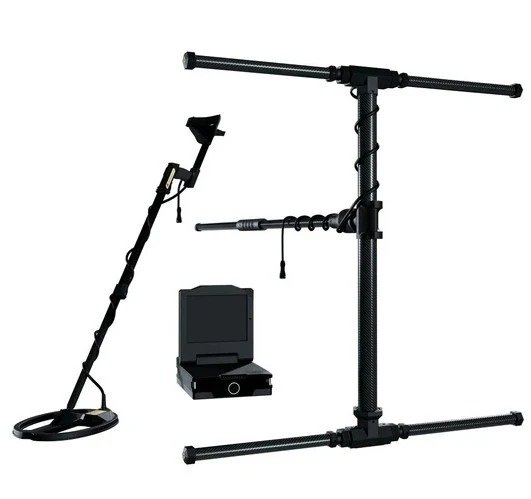

INCLUDES:

• 1x Control Unit

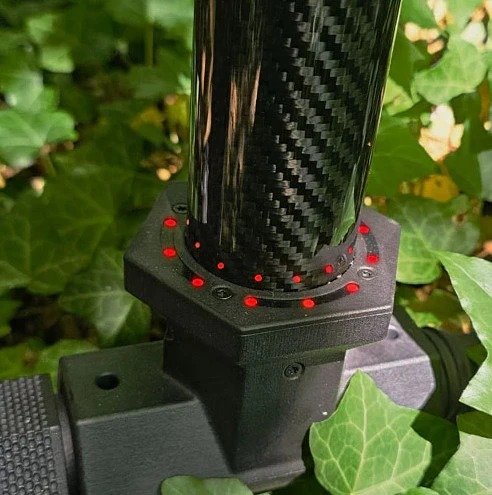

• 1x Super Sensor with LED Orbit
• 4x Extender
• 4x Protective Cap
• 1x (Detachable) Carrying Rod
• 1x 13×10″ VLF Coil X7
• 1x Telescopic Rod
• 1x Bluetooth Headphones incl. charging cable
• 1x Charger with charging cable (USB-C)
• 1x Power Pack PP20V3A01
• 1x Carrying strap
• 1x Backstrap
• 1x Pre-configured Windows Notebook
• 1x USB Flash Drive with OKM Visualizer 3D Studio Professional Edition
• 1x Waterproof and shock-resistant Protector Case
• Bonus: One Hour OKM 3D Software Free Training, 1x OKM Power Pack
• 2 Year Limited Warranty

(The actual scope of delivery is subject to technical developments or specific model configurations and can differ from depicted components.)

FEATURES:

8 OPERATING MODES:

The new 3D VLF Scan mode enables quick and efficient scanning before digging. Especially helpful in the field are the Mineral Scan for natural gold detection, the Tunnel Scan for identifying underground voids, and the Live Scan for immediate visual feedback during exploration. Combined with reknowned OKM operating modes like 3D Ground Scan, Magnetometer, Pinpointer, and VLF Metal Detection, the eXp 7000 adapts easily to different terrains.

3D Ground Scan

Detect underground structures and objects down to 25 m (82 ft) deep with the 3D Ground Scan. Scan results are displayed as a 3D visualization in Visualizer 3D Studio for detailed analysis.

Magnetometer

Magnetometer is ideal for cleaning the scan area of small ferrous items, such as nails, cans, and screws, that are near the surface, before starting a 3D Ground Scan.

Live Scan

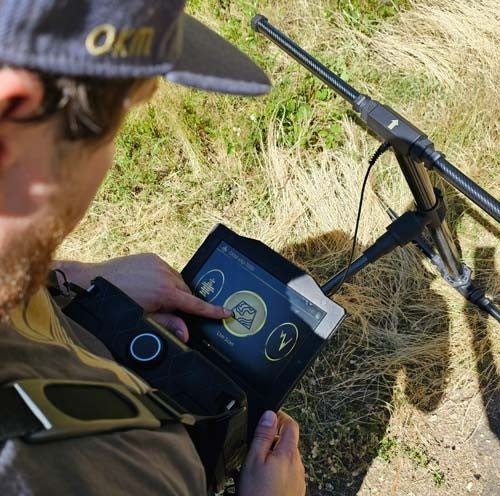

Live Scan provides real-time visualization of underground anomalies and structures – now with 3D View or Top View for enhanced interpretation.

Mineral Scan

Mineral Scan detects natural gold deposits and mineralized zones in the ground. The new percentage display shows the potential amount of mineralized zones.

Tunnel Scan

Use Tunnel Scan to detect underground voids, tunnels, and cavities. Now with improved visualization for easier analysis.

Pinpointer

The trusted Pinpointer for accurate target localization – now enhanced with a new display of the scan line and current signal strength.

3D VLF Scan

The brand-new 3D VLF Scan allows scanning entire fields using VLF technology. The measurement data is saved for later 3D visualization and analysis in Visualizer 3D Studio.

VLF Metal Detection

Use VLF Metal Detection to locate near-surface metal objects like rings, coins, jewelry, and small artifacts.

Adaptable Scanning for Wide and Narrow Terrains

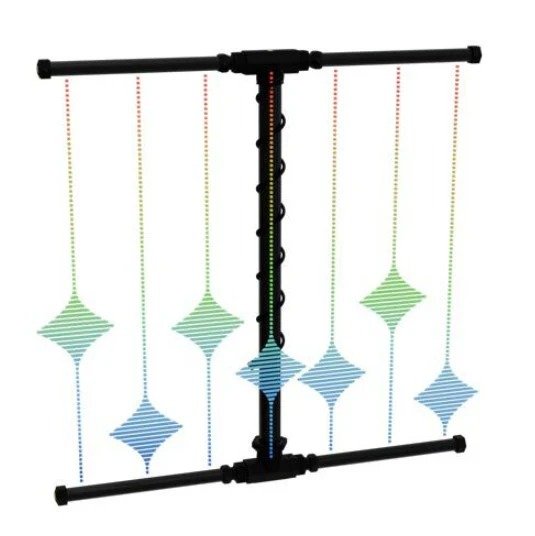

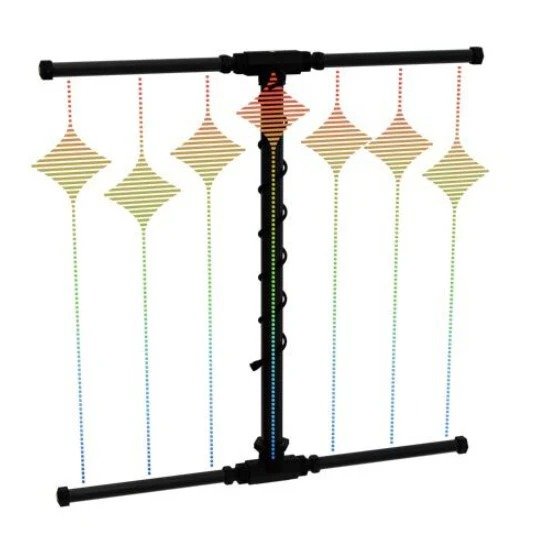

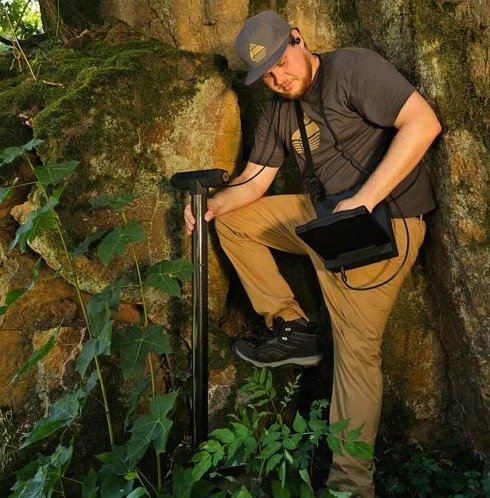

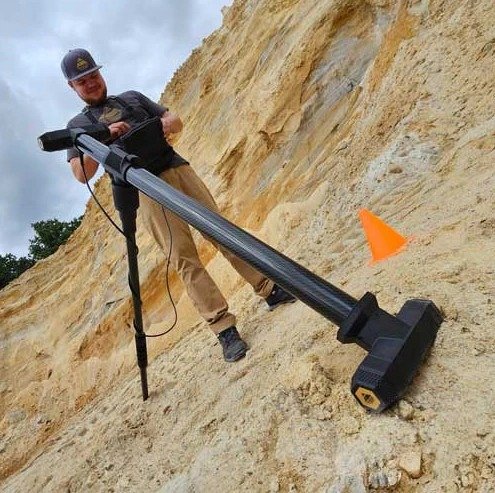

The OKM eXp 7000 Professional Plus is engineered for maximum adaptability across various terrains – from vast, open landscapes and deserts to narrow spaces like caves, rock crevices, or forested slopes. In wide terrains, the detector can be equipped with the innovative SuperSense System X7, including the Super Sensor and up to four Extenders. This configuration activates seven sensor pairs simultaneously. As a result, users need fewer scan lines to cover large areas efficiently – saving time without compromising resolution.

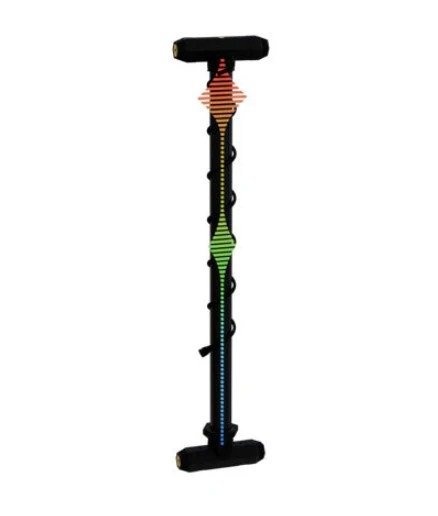

Customized Super Sensor for Every Terrain

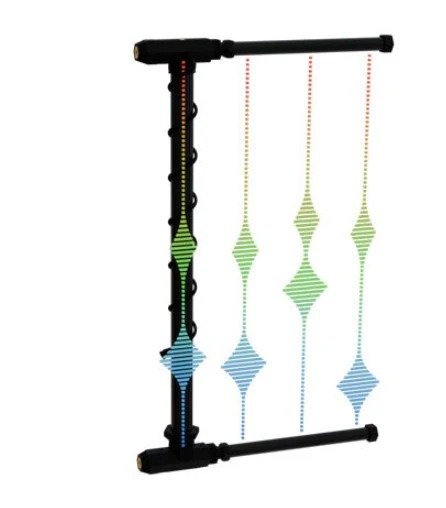

The 4 interchangeable Extenders offer flexible configuration options to match the scanning environment. Depending on the terrain and target area, users can attach two Extenders to one side or mount all four Extenders on both sides to set up the full SuperSense System X7. The OKM eXp 7000 Professional Plus easily adapts to the surroundings, ensuring efficient scans in any setting, whether using only the Super Sensor or the complete SuperSense System.

Metal Detecting with VLF Technology

The OKM eXp 7000 Professional Plus features advanced Very Low Frequency (VLF) technology for detecting metal objects close to the surface. The VLF coil sends an electromagnetic field into the ground, which induces electrical currents in buried metals. These currents produce a secondary electromagnetic field that is picked up by the OKM eXp 7000 VLF metal detector. This technology is ideal for locating a wide range of metal items, including coins, jewelry, relics, militaria, and small artifacts – especially in shallow soil layers.

Smarter Metal Detecting with 3D VLF Scan

The brand-new mode 3D VLF Scan revolutionizes traditional metal detecting with VLF coils. Instead of interrupting the search to dig at every signal, users can now scan the entire area in one go — just like with a conventional 3D Ground Scan. Excavation is then focused only where the scan shows clear anomalies. This makes the search process faster, more efficient, and helps avoid unnecessary digging.

Treasure Detection with Metal Discrimination and Scan Profiles

The OKM eXp 7000 combines advanced VLF technology with intelligent scan profiles to deliver highly efficient metal detection. Valuable metals like gold and silver can be distinguished from less desirable targets such as iron or bronze, allowing users to focus on promising finds. Preset scan profiles help filter out unwanted signals and automatically adjust frequency settings for optimal performance. For more control, custom profiles can be created with user-defined frequency ranges — perfectly suited for varying ground conditions like mineralized soils, dry or wet sand, or areas with high scrap density.

Control Unit

• Dimensions (H x W x D): 3.5 x 8.5 x 9.8″ | 90 x 215 x 250 mm
• Weight: 66 oz | 1.86 kg
• Battery: Li-ion, replaceable, 7.27 V, 10.2 Ah, 74.154 Wh
• Input: 12 V DC, 3 A max
• Output: 6.4 – 8.4 V DC, 15 W max
• Operating Time (fully charged): 7 h @ 77 °F | 25 °C, medium brightness
• Charging Time: 3 h @ 50 – 86 °F | 10 – 30 °C
• Display: 8.4″ Diagonal, 1024 x 768 Pixel LVDS IPS-LCD
• Processing Unit: Main (ARM Cortex 4x-A53@1.6GHz), Companions (1x-M33@96MHz, 1x-M4@48MHz, 1x-M33@38MHz, 1x-M7@216MHz)
• Working Memory (RAM): 2 GB
• Data Memory (eMMC): 8 GB
• Operating Temperature: -10 °C – 50 °C
• Storage Temperature: -20 °C – 60 °C
• Air Humidity: 5 % – 75 %
• Safety Class: IP40
• Waterproof: No
• Data Transmission: USB-C
• Feedback: acoustic, visual
• Audio: built-in Speakers or Bluetooth-LowLatency (A2DP)

Super Sensor

• Dimensions (L x W x D): 39.8 x 8.3 x 4.3″ | 1010 x 210 x 110 mm
• Weight: 33.2 oz | 0.94 kg
• Cable Length: 70″ | 180 cm
• Input: 6.4 – 8.4 V DC, 4 W
• Safety Class: IP40
• Receiver: Dual/Hi-Gain, Vertical, Geophysical Phase Reader/EMSR
• Sensor Technology: SCMI-15-D
• Processing Unit: ARM Cortex-M33@38MHz

Extender

• Length: 17.3″ | 440 mm
• Diameter: 1.9″ | 48 mm
• Weight: approx. 7 oz | 0.2 kg
• Input: 5.0 V DC, 0.25 W maximal
• Safety Class: IP40
• Sensor Technology: SCMI-15-D

VLF Coil X7

• Dimensions (L x W x H): 12.8 x 10.1 x 2.8″ | 325 x 255 x 70 mm
• Weight: 24.7 oz | 0.7 kg
• Cable Length: 70″ | 180 cm
• Input: 6.4 – 8.4 V DC, 2 W max
• Safety Class: IP40
• Technology: VLF
• Processing Unit: ARM Cortex-M7@216MHz

Detachable Carrying Rod

• Front Part with clamp, Dimensions (L x ⌀): 34.6 x 2.7″ | 880 x 68 mm
• Front Part with clamp, Weight: 31.7 oz | 0.9 kg
• Midsection, Dimensions (L x ⌀): 27.8 x 1.4″ | 705 x 35 mm
• Midsection, Weight: 14.8 oz | 0.42 kg
• Rear Part with counterweight, Dimensions (L x ⌀): 16.4 x 1.4″ | 415 x 35 mm
• Rear Part with counterweight, Weight: 37.4 oz | 1.06 kg
• Length, assembled: 76.2″ | 1935 mm
• Weight, assembled: 84.7 oz | 2.4 kg

The technical data are average values. Minor deviations are possible during operation.
