KEY FEATURES
- 10 unique zones for pinpoint detection.
- Simple Readable Display Panel.
- Automatic self calibration & Tuning.

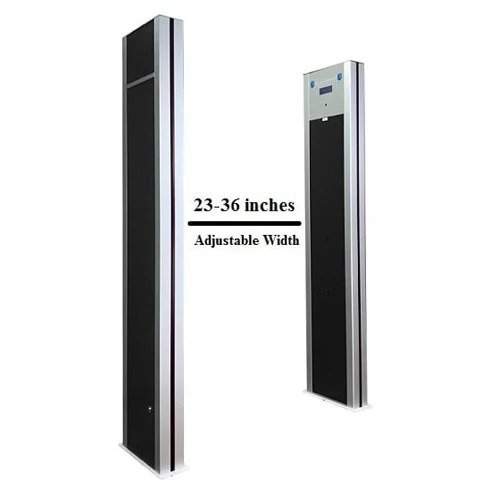

- Max width of 36 inches this far exceeds the ADA (American Disabilities Act.)
- Warranty 2-Year standard warranty Limited Parts/Labor.
- FREE – Programming, Shipping and Security Hand Wand.
APPLICATIONS
Metal Defender’s XLD-H Walk-through Metal Detector provides pinpoint accuracy and discrimination features. This detector is effective in all environments including but not limited to airports, government buildings, correctional facilities, and sports venues. While being cost effective it also provides the same security that professionals worldwide receive from other brands. With its adjustable width, there is no walk-through on the market that can provide the same degree of flexibility.
More Details
With a max width of 36 inches this far exceeds the ADA (American Disabilities Act) requirements for a width of 32 inches. This also allows a greater deal of utility that other metal detectors can’t compete with such as the ability to transport objects through the inside tunnel including: Gurneys’ for hospitals, Media equipment for press, mechanical equipment for engineers, extra-wide wheelchairs and so much more do to the adjustable width of the passageway. With its extremely easy to follow installation guidelines from time you receive the product and time you set up it will only take 15 minutes.
Advanced Features
-Max width of 36 inches this far exceeds the ADA (American Disabilities Act) requirements for a width of 32 inches.
-10 independent zones available to choose, Dual High-Brightness Red LED Display
-Statistics: Record the pass and alarm numbers
-Can change detection zones according customers’ demands
-4 sensitivity presets from which to choose from
-No harm to human body with peacemakers, pregnant women and digital equipment.
-Dual detection: with transmitters and receivers in each panel. Scanning from both sides the XLD-H provides superior detection, uniformity and performance.
Dimensions & Weight
| Product Dimensions (Per Leg) | 4.75″W x 78.5″H x 15.5″D |
| Passageway Interior Size | 23″- 48″W x 68″H x 15.5″D |
| Weight | 76lbs per leg |
Specifications
| Standard Programs | 4 “Occasions” for pre-programming the unit |
| Sensitivity | 10 Adjustable Zones with sensitivity levels from 0–255 |
| Zone Indications | 10 Zones |
| Control Panel Per Leg | Each leg has customizable parameters |
| Tamper-Proof Settings | 4-digit customizable passcode |
| Self Diagnostics | Unit self-diagnoses upon startup/reset |
| Warranty | 24-month standard warranty (Limited Parts/Labor) |
| Product Dimensions | Legs: 78½” (H) × 15½” (D) × 4¾” (D) Passage: 68″ (H) × 15½” (D) × 23–36″ (W) Adjustable |
| Shipping Weight | 2 pieces per unit – Legs: 80 lbs each |
| Temperatures | Operating: -20°C to 60°C Storing: -20°C to 50°C |
| Power | Power Supply: AC110V/60Hz Weight: 35 kg Consumption: <35W Work Environment: -20°C to +45°C |
| Weatherproofing | IP20 – Water/Dust resistant |
