Metal Defender Walk Through Metal Detector MD-6-ADA

Description

The Metal Defender MD-6-ADA Walk Through Metal Detector features a Highly Integrated Dual High-Brightness LED host, allowing for efficient, thorough scanning for hidden metal items on the body. It can detect a wide range of metallic objects, including guns, knives, and consumer electronics. With a maximum sensitivity of 255 levels, remote control, and a user-friendly software interface, installation and maintenance are made significantly easier.

HIGHLIGHTS

ADA Unit With an Expanded Width of 32 Inches for Channel , and 36 Inches for Total Width
Awarded the Developmental Testing and Evaluation Designation by the Department of Homeland Security
Easy Setup Assembles In Minutes, Simple Instructions
Programmable Sensitivity
Pre Programming Available
6 LED Zone Alarms to identify item location
Can be Mounted on wheels for mobility
Easy 10 Min Setup and Install
Includes 2 Year Free Replacement Warranty
Includes Free Hand Held Metal Detector
Free Shipping to your Door (U.S. 48)

APPLICATIONS

Metal Defender’s MD-6-ADA Walk-through Metal Detector provides pinpoint accuracy and discrimination features. This detector is effective in all environments including but not limited to airports, government buildings, correctional facilities, and sports venues. While being cost effective it also provides the same security that professionals worldwide receive from other brands.

ADVANCED FEATURES

Max width of 32 Inches
6 independent zones available to choose, Dual High-Brightness Red LED Display
Statistics: Record the pass and alarm numbers
Can change detection zones according to customers’ demands
4 sensitivity presets from which to choose from
No harm to the human body with peacemakers, pregnant women and digital equipment.
Dual detection: with transmitters and receivers in each panel.

Dimensions & Weight

Product Dimensions	87 ½ in(H) x 36 in(W) x 15 ½ in(D)
Passageway Interior Size	78 in(H) x 32 in(W) x 15 ½ in(D)
Shipping Weight	2 Pieces per unit – Legs: 76lbs/Head 35lbs

More details

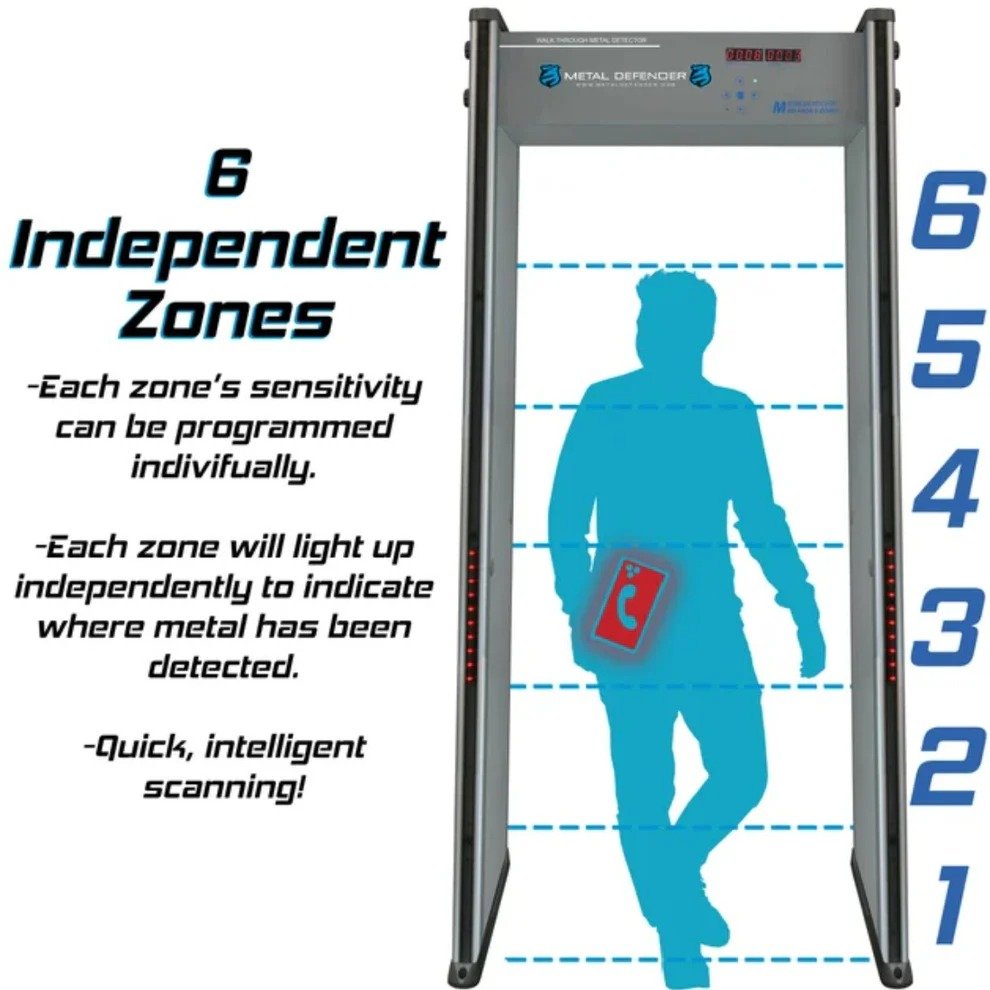

6 Zone Detection	6 LED zone alarms to identify item location
Traffic & Alarm Counter	Monitors and tracks alarms and traffic
Programmable Sensitivity	255 programmable sensitivity levels per zone
Dual LED Probe Sensor	Zone-specific LED sensors indicate metallic detection area
Anti Interference	11 adjustable frequencies to nullify and prevent external interference

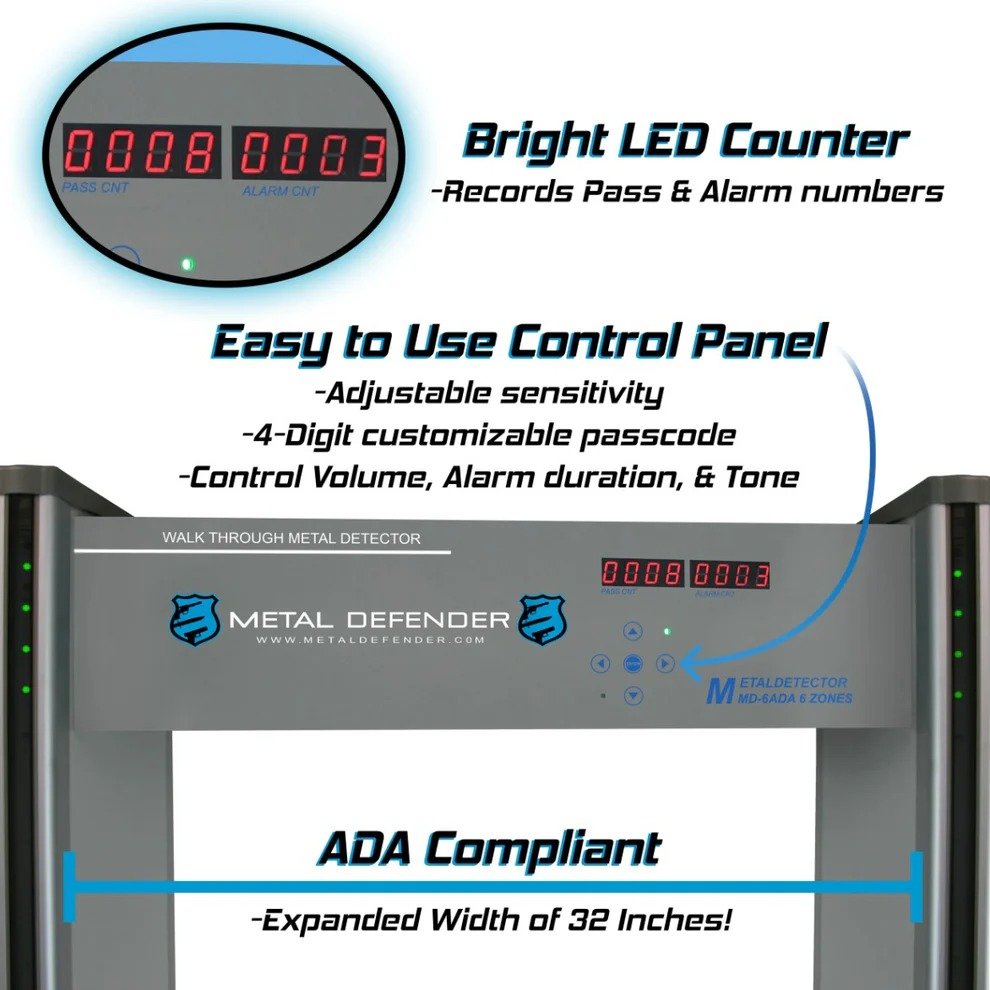

Control Panel	User-friendly panel with standby, alarm, and interference indicators
Tamper Proof	Changeable password protection
Mobility	Optional wheels for increased mobility
Water Resistant	Meets IP31 standards

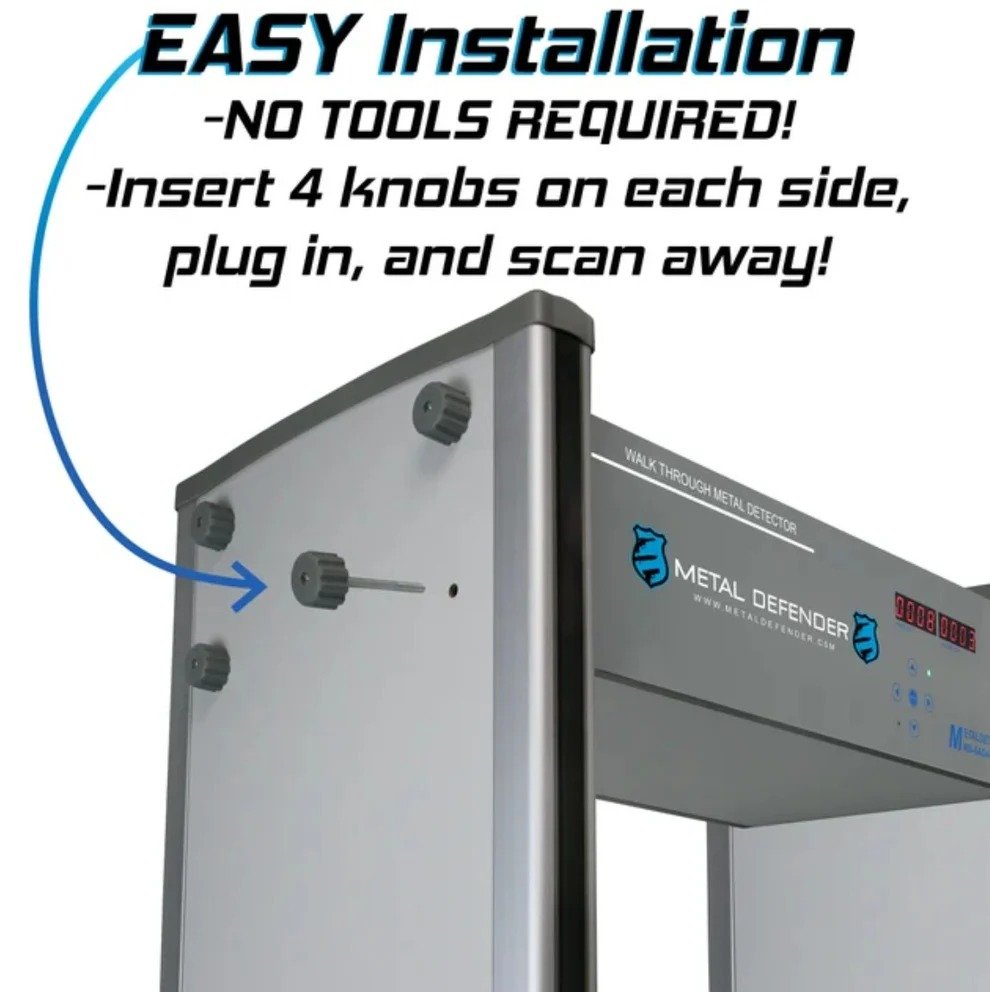

Easy Assembly	Quick setup in minutes

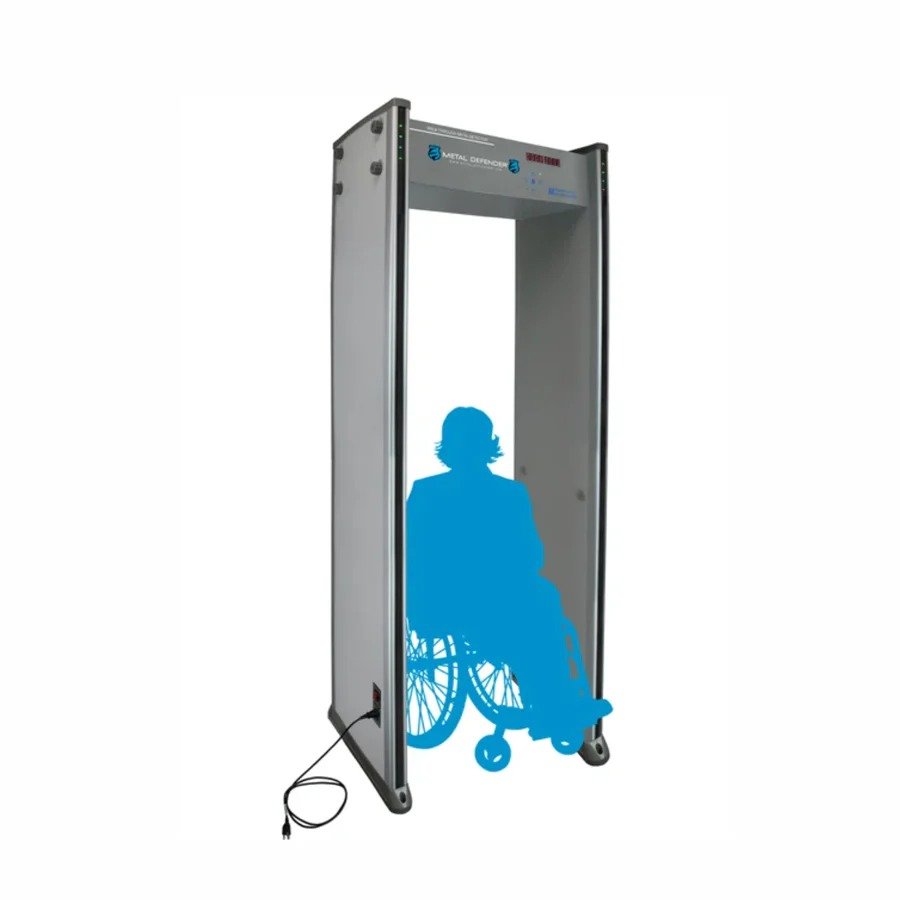

ADA Compliant	ADA unit with 32” channel width and 36” total width

Specifications

Each Zone Sensitivity Level	Adjustable (0–255)
Power Consumption	Less than 35W
Detection Standard	Metal object size ≥ 6 grams
Working Voltage	AC 85–264V / 47.5–60Hz
Operating Temperature	-20℃ to +60℃
Tamper-Proof Settings	8-digit customizable key code

Videos

Changing Zone Sensitivity for Each Individual Zone

Overall Sensitivity Adjustments

Changing Alarm Duration

Changing Unit Frequency

Changing the Tone of the MD6A

Downloads

User Manual

Foolproof Quick Guide for Programming
