JW Fisher Boat Towed Pulse 12 Metal Detector

Highlights:

• Commercial grade construction
• Ability to add up to 3 coils
• Computer interface and software (optional)
• Audio jack for headphones
• The Pulse 12 is backed by JW Fishers exclusive, unconditional TWO YEAR warranty.
• Very Sensitive
• Can Tow up to 3 Search Coils
• 16’ x 24’ Detection Area
• Detects All Metals
• 150’ – 500’ Kevlar Reinforced Cable
• 1-4 MPH Tow Speed

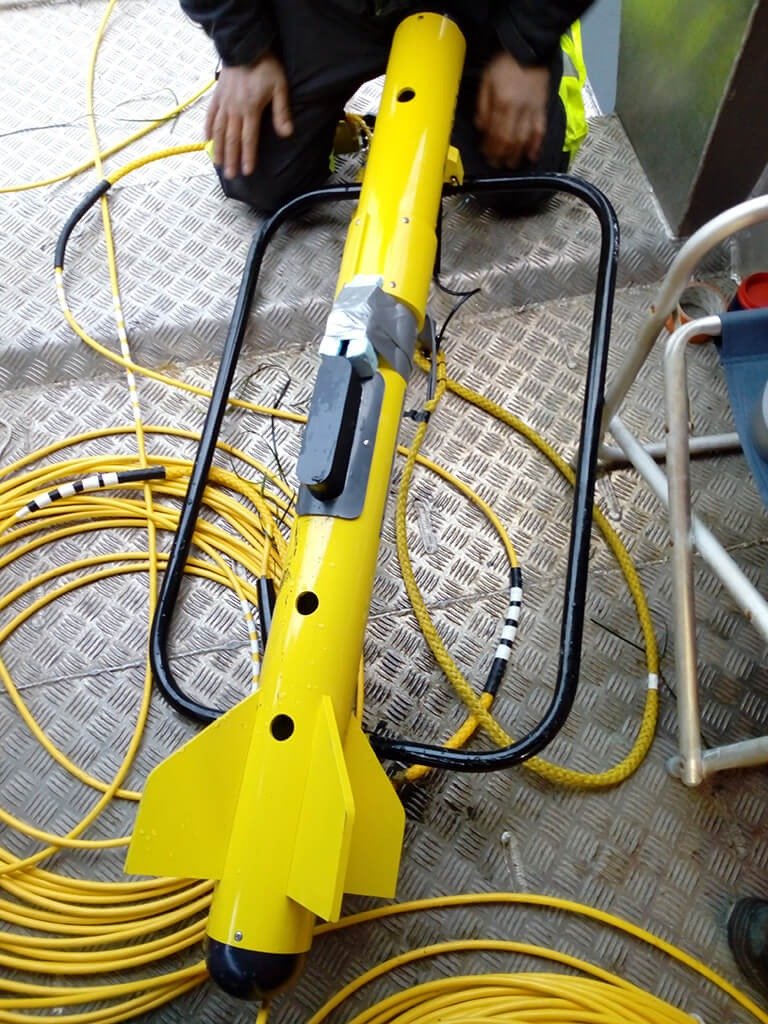

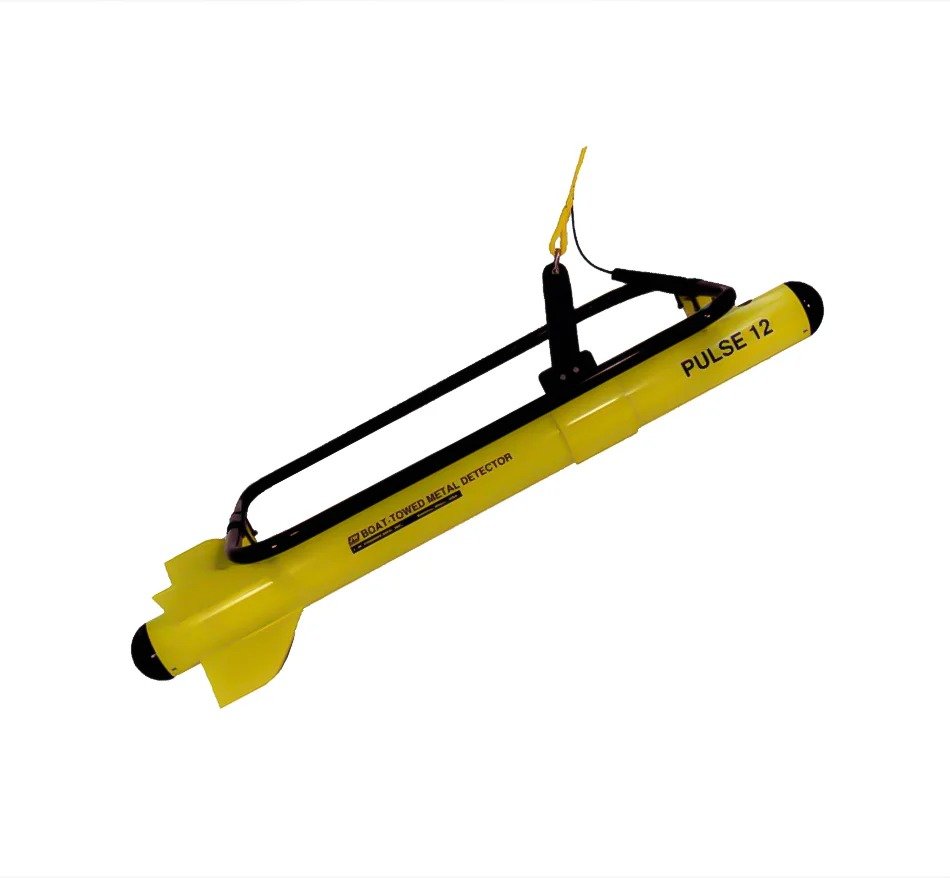

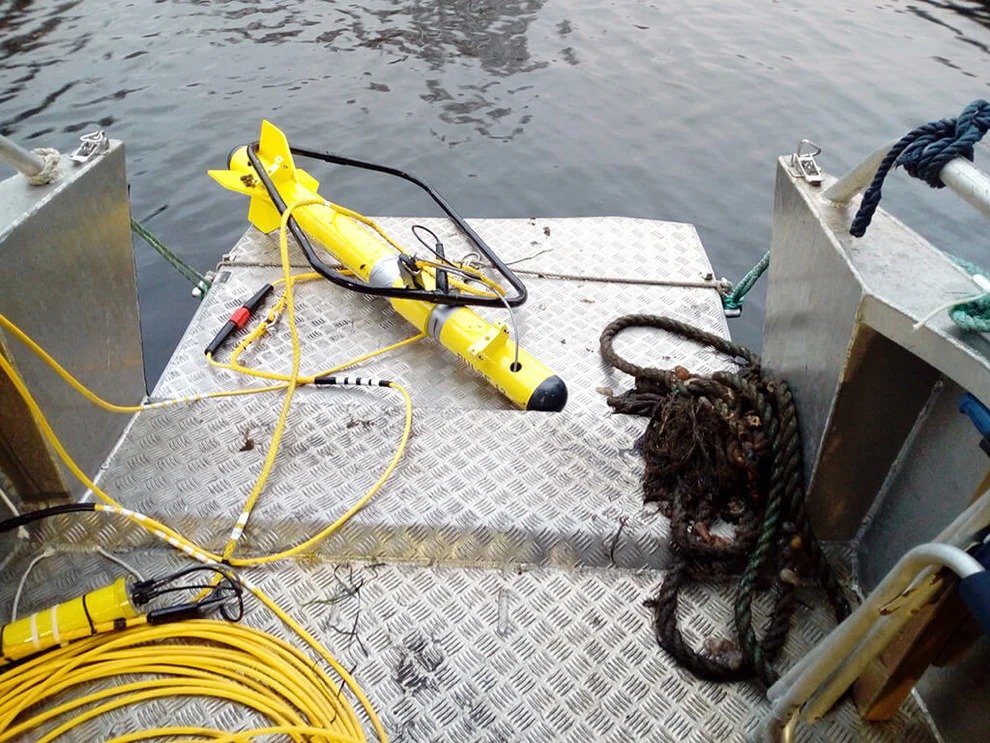

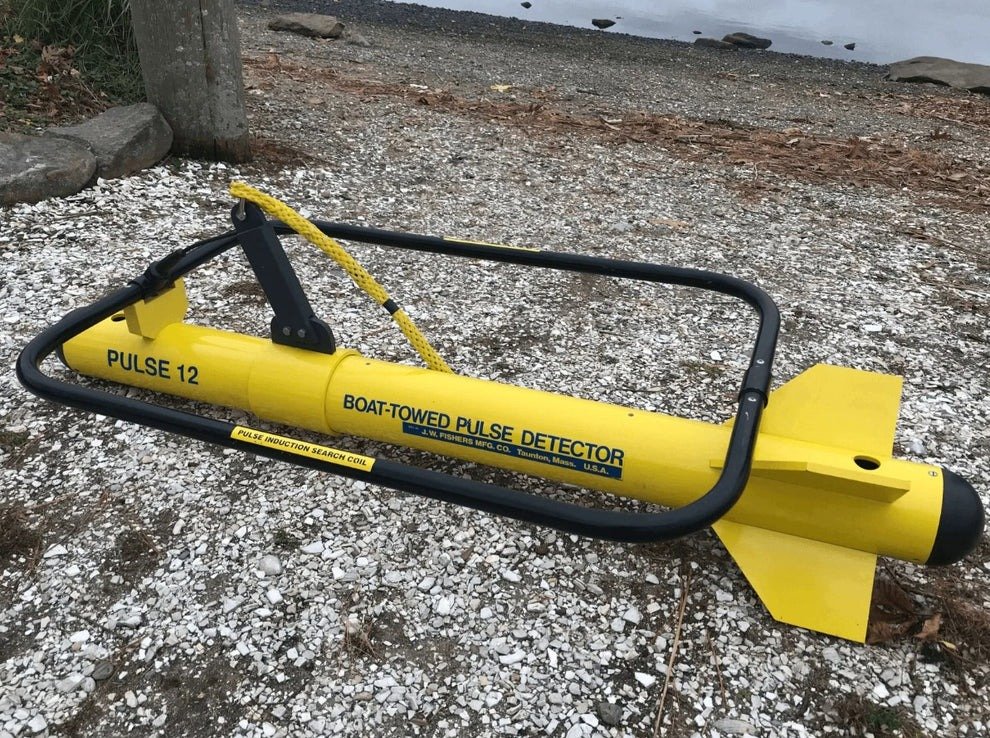

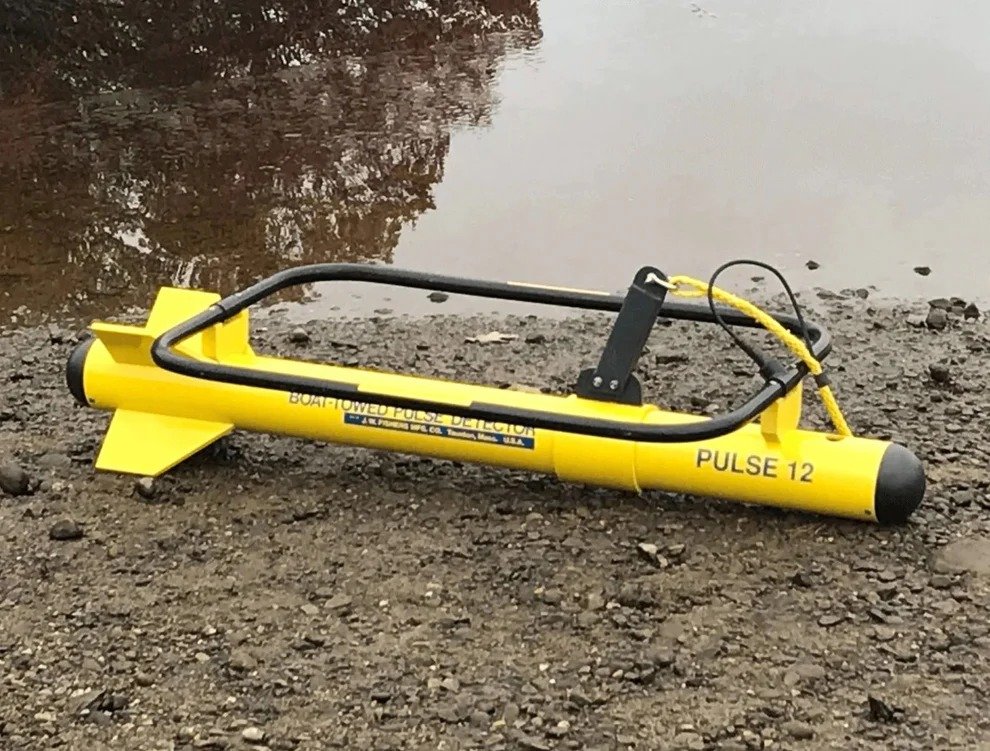

The Fisher Pulse 12 is a high-performance, boat-towed pulse induction metal detector designed to detect both ferrous and non-ferrous targets in marine and land environments. With a wide 24-foot detection envelope and a 16-foot depth range, it is ideal for locating objects such as:

• Aluminum boats
• Brass propellers
• Outboard motors
• Steel anchors
• Bronze cannons
• Gold bars

Triple Coil Capability for Maximum Efficiency

A standout feature of the Pulse 12 is its control unit, which supports up to three simultaneous search coil inputs. Using three coils instead of one triples your search coverage, saving significant time, fuel, and manpower—a game-changer for large-scale operations.

Pulse Induction Technology: Reliable in Any Environment

Unlike conventional detectors, the Pulse 12’s pulse induction technology completely ignores environmental minerals while maintaining exceptional sensitivity to all metals. It operates flawlessly in:

• Mineralized saltwater
• Coral reefs
• Iron-rich rocks
• Magnetic black sand

Detection performance remains consistent, whether detecting through air, water, silt, sand, or solid coral.

Includes:

Optional upgrades include:

• Extended cable lengths (up to 500 ft)
• UA-2 altimeter
• USB data output interface
• Tracker™ software
• DDW-1 deep dive wing

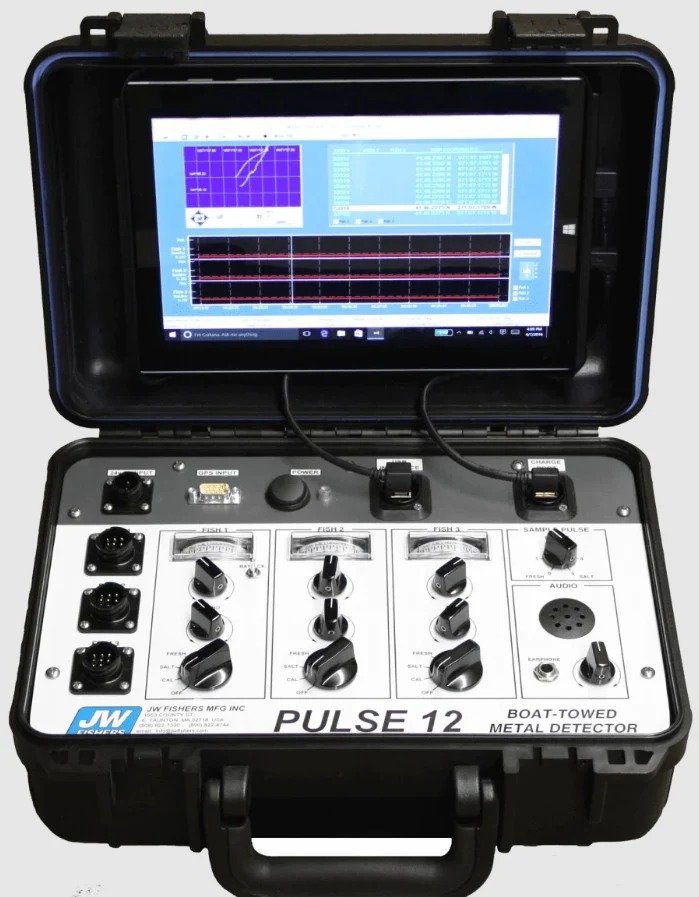

• Microsoft Surface® tablet (mounts in the control box lid)
• The unit runs on two 12-volt batteries with a low total power draw of just 12 watts.

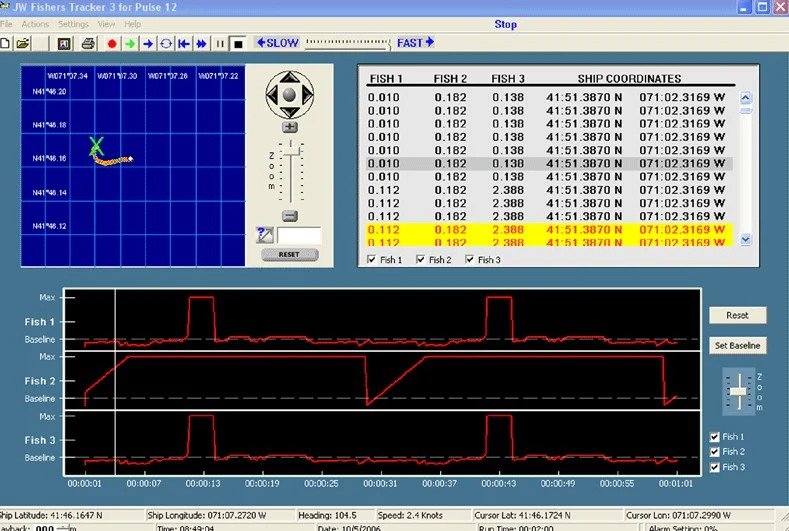

Tracker Software & Advanced Mapping

The optional Tracker 3 software enhances your search experience by displaying:

• Real-time path tracking over the search area
• A cascading waterfall of live Pulse 12 and GPS data
• Color-coded alerts when a target is detected
• Graphical representation of signal strength over time
• Key navigation data such as speed, heading, and alarm settings

Up to three towed coils (“Fish”) can be monitored on a single screen.

Tracker data and maps can be exported as images or KML files, allowing easy integration with other GIS or mapping platforms. All data is also storable on a PC or disk for future review.

Trusted Worldwide

In service with military, law enforcement, commercial divers, and professional treasure hunters across the globe, the Fisher Pulse 12 is celebrated for its large detection range, high sensitivity, and rugged reliability in demanding underwater environments.

Specifications

System Information

• Max detection area – 16 foot depth, 24 foot wide
• Tow speed – 1 to 4 mph
• Input voltage – 24 VDC
• Power consumption – 12 watt
• Readout – meter and audio

Sensitivity (in water) Fresh & Salt Water

• Coil – 24”W x 36”L – 10 lbs.
• Fish – 53” L x 4.5” D – 20 lbs.
• Control box – 14”L x 10”W x 6”H – 8 lbs.
• Cable – .375”D x 150’ to 500’ – 15 to 50 lbs.

Shipping boxes

• Fish – 60”L x 11”W x 13”H – 48 lbs.

• Extra Coil, Cable and Fish: $3,995
• 500 ft (150m) housing: $995
• Cable Management Systems: Price: $2,995 / $3,495
• Underwater Cable Connector: $895
• DDW-1 Deep Dive Wing (for deep water towing): $1,395
• UA-2 Altimeter (to measure distance off bottom): $895
• USB data output Output Interface: $995
• Tracker 3 Software: $995
• Tablet 10.8″ Windows® based tablet mounted into control box: $949
• GETAC® Laptop – S410 (or equivalent) semi-rugged 14″ laptop, MIL-STD 810H certified: $1,995
• Extra Cable (up to 1,000 ft): $5/foot

If you are interested in any of the options, please contact us to add to your order.
