HIGHLIGHTS:
Ultra-Pulse™ Technology for Maximum Depth: Detect sub-gram gold nuggets and larger targets with advanced Pulse Induction technology optimized for extreme depth and precision in highly mineralized soils.
Includes Two Coils for Versatility: Comes with both a 13″x11″ DD coil for broader ground coverage and an 11″x7″ Mono coil for increased sensitivity to small gold — adapt to different terrains and target sizes with ease.
Super Lightweight & Ergonomic Design: At just 4.2 lbs (1.9 kg), the Axiom is one of the lightest professional PI gold detectors available, reducing fatigue for all-day hunts in rough terrain.

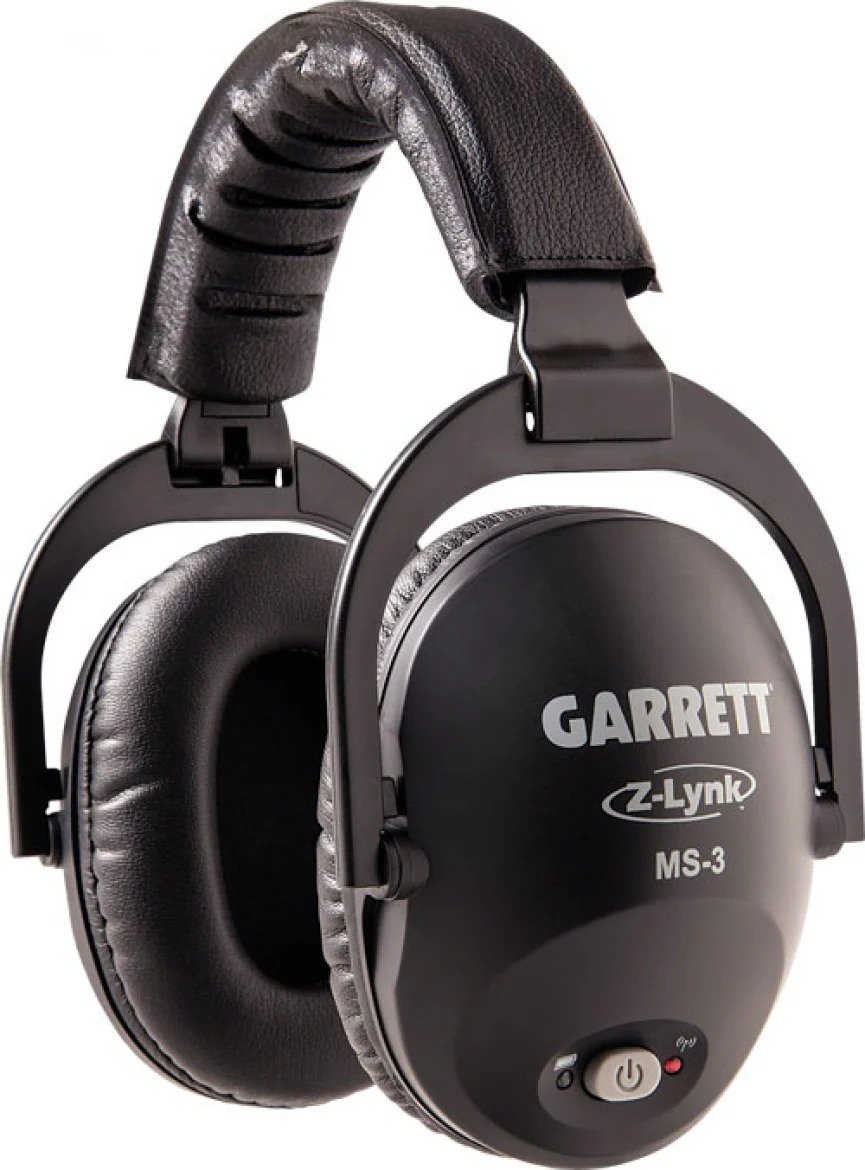

Z-Lynk™ Wireless Audio with MS-3 Headphones: Enjoy instant audio response with included MS-3 wireless headphones — no cords, no delay, just seamless detecting.
Built-In Rechargeable Lithium Battery: Offers up to 16 hours of detecting time per charge, with fast USB-C charging and backup power pack support for extended field use.

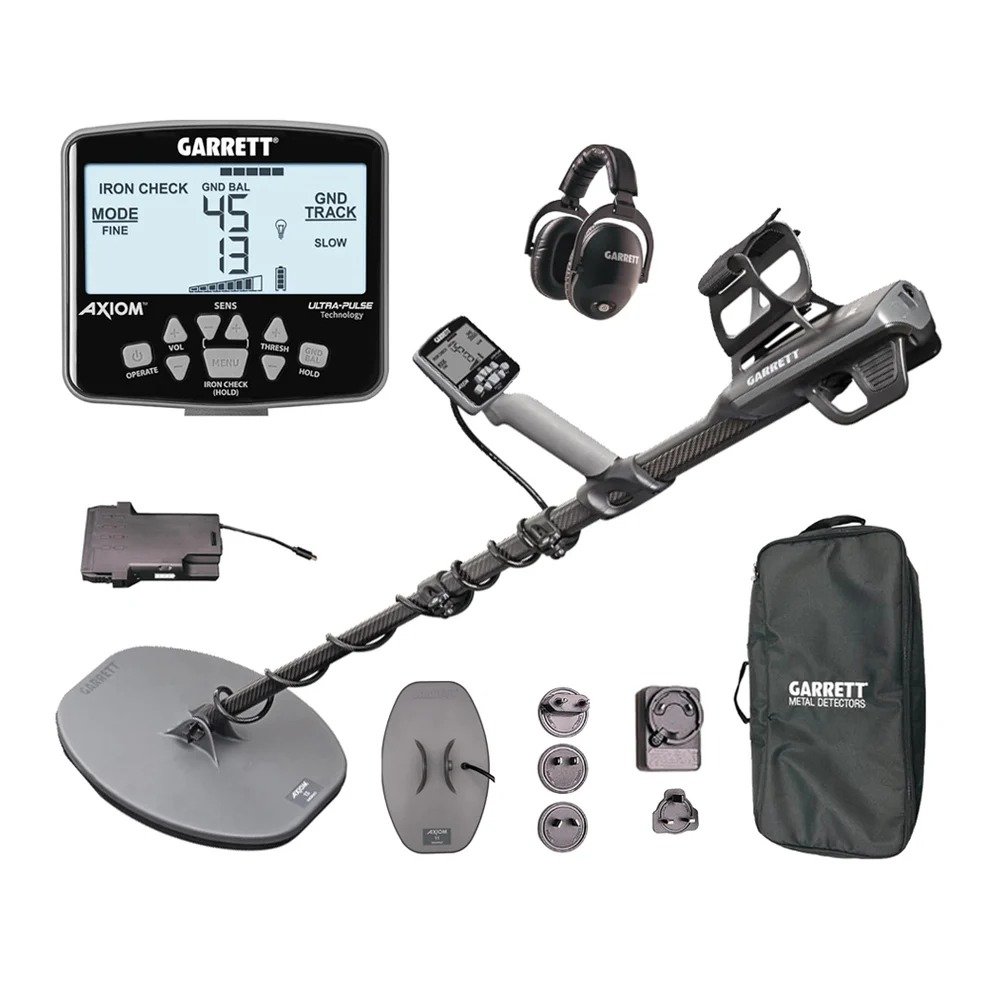

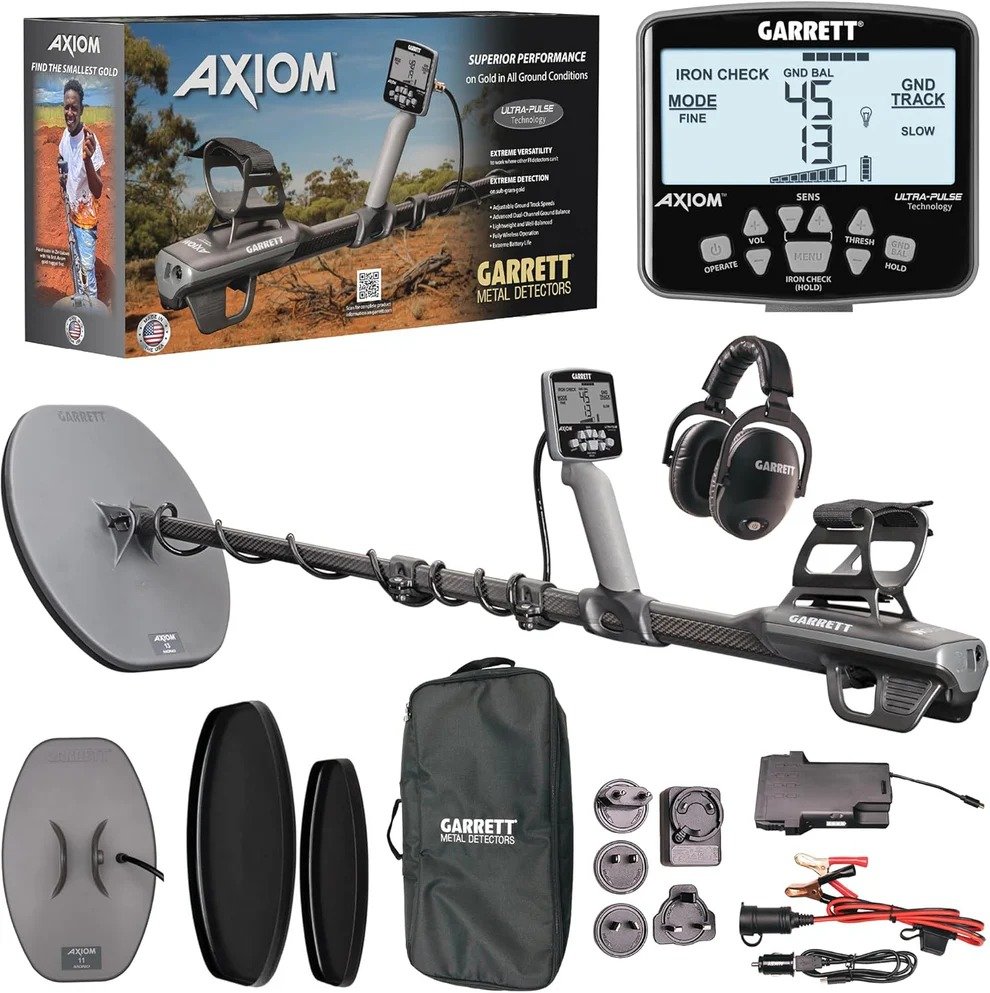

INCLUDES:
- Garrett Axiom Metal Detector
- MS-3 Wireless Headphones
- 11″x13″ DD-FC searchcoil
- 7″x11″ Mono coil
- Coil covers
- Charging cable

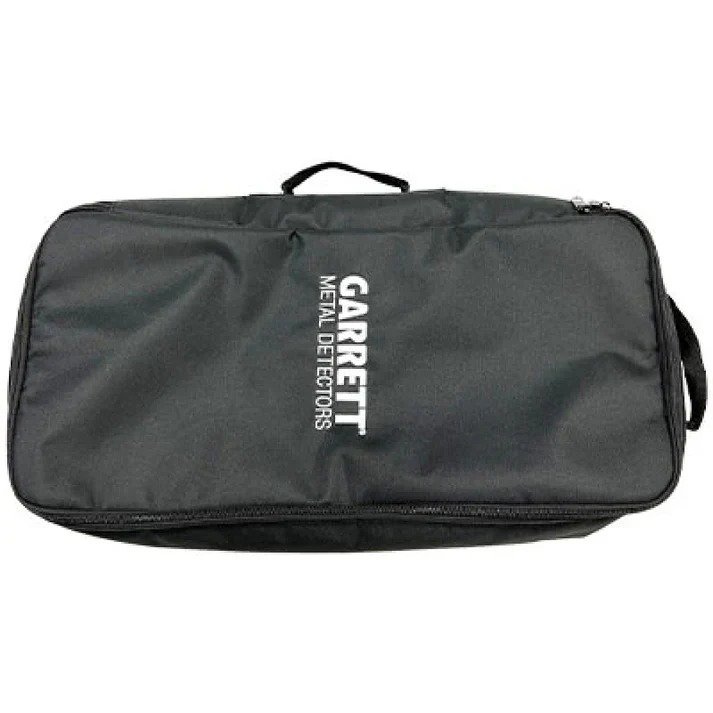

- Carry bag
- External battery pack
- 3-Year Manufacturers Warranty
More Details
Spec & Details
- Includes 11″x13″ DD-FC search coil and 7″x11″ Mono coil.
- Built-in wireless, with MS-3 Z-Lynk wireless headphones included.
- Ultra-Pulse Technology provides enhanced sensitivity and complete environmental versatility.
- Four settings, to help find gold of all sizes.

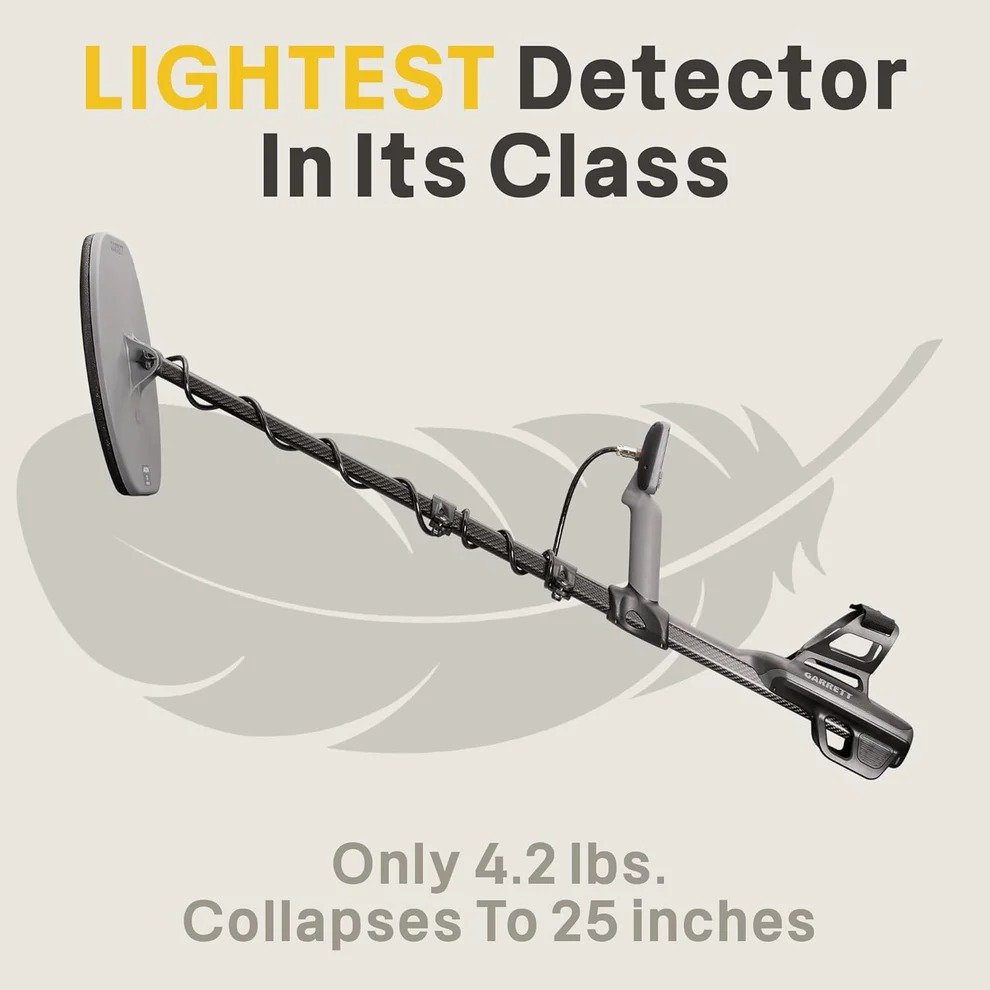

- Lightest detector in its class, and collapses to 25″ for transport.
- Terra-Scan dual channel ground balance system.
- Iron Check feature to help audibly identify iron targets.
- Superior electrical interference elimination!
- Headphones can connect with wireless Z-Lynk or with ¼” headphone jack.

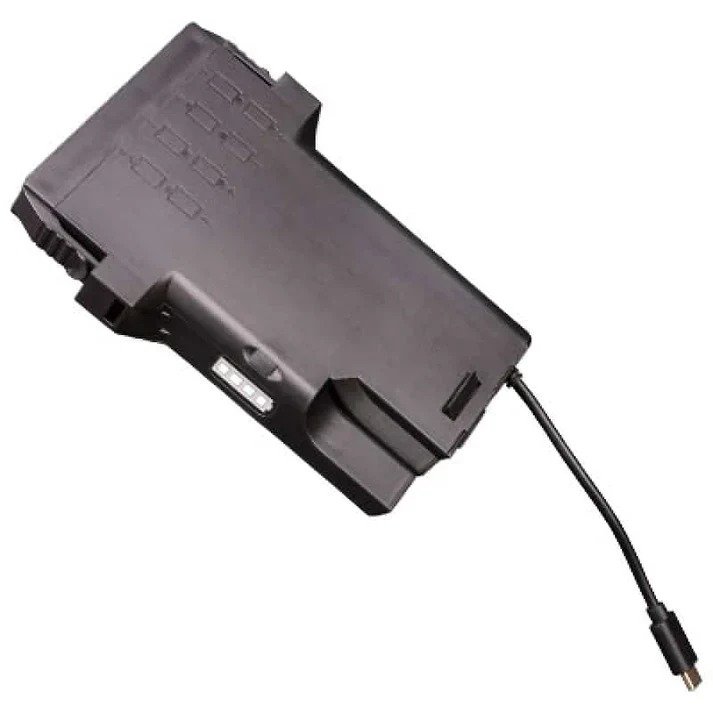

- External Power Pack holds eight AA batteries, either standard or rechargeable. Use this pack to get another 6 hours of battery life in remote areas.
Enhance Detection With a Pulse Induction Metal Detector
Experience the potential of gold prospecting with the Garrett Axiom metal detector. With cutting-edge Ultra-Pulse Technology, the Axiom excels in identifying target objects in the most extreme mineralized soils. Our innovation in pulse induction technology enhances this detector’s flexibility, allowing users to discover large gold nuggets and small pickers. Choose from the four current settings, including Fine, Normal, Large, and Salt, to ensure the best metal-detecting experience. This pulse induction detector is lightweight and has a built-in lithium-ion battery, providing up to 16 hours of battery life on a full charge. The Axiom isn’t just a tool but is a revolution in gold prospecting. It sets a new standard for treasure hunters wanting to push their limits.
Other Features
The Axiom pulse induction detector has advanced features that cater to the diverse needs of gold prospectors and treasure hunters:
- Search Coil Options: Includes a 11″x13″ DD-FC searchcoil and 7″x11″ Mono coil for an enhanced detection range and versatility in different environments.
- Power Supply: A built-in lithium-ion battery offers 16 hours of operation, twice the battery life of some other prospecting detectors.
- Audio Options: Allows for two audio threshold options, a PWM audio or VCO audio, providing clear and distinct audio cues for metal target identification.

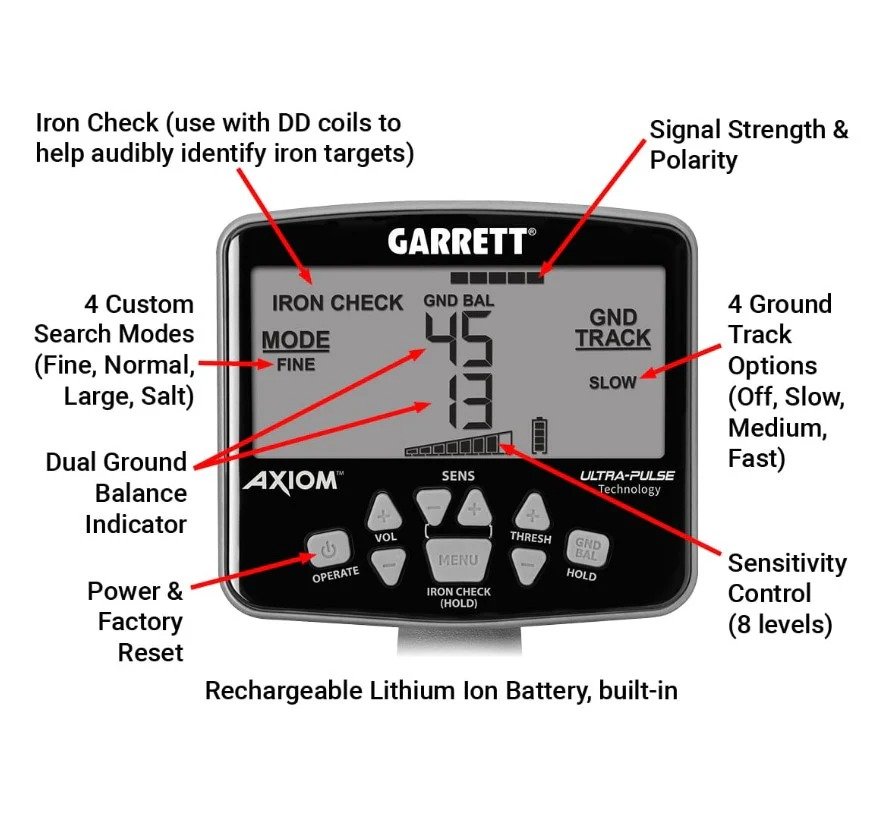

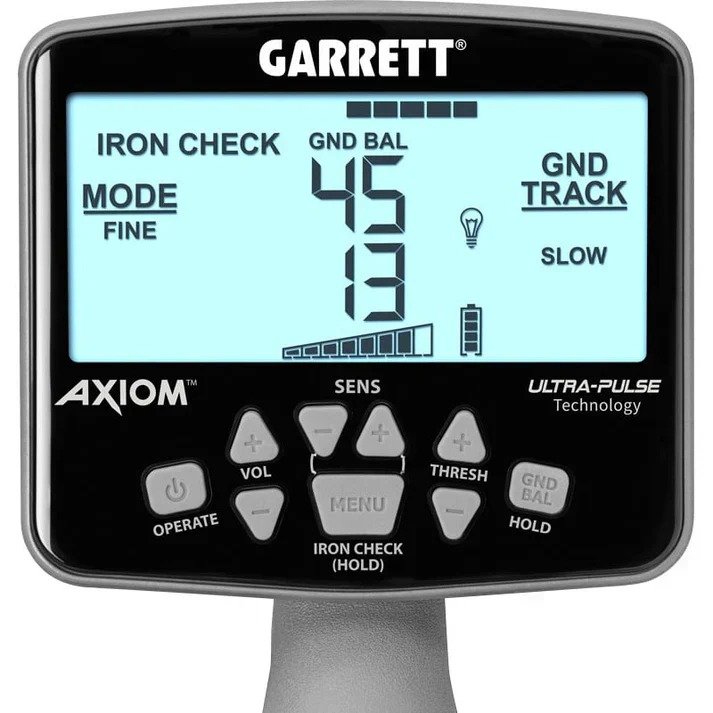

- User-Friendly Control Box: Includes volume control, iron check, and threshold buttons for quick access and a full range of controls for users.
Videos
Downloads
Q&A
How does the Axiom work?
The Axiom is a PI detector designed for gold prospecting. When a metal object is detected, the device picks up the object’s magnetic field and alerts the operator. This device is the best detector for identifying both small objects and larger gold nuggets.
How do I keep my metal detector in optimal condition?
We recommend storing the Axiom in its travel bag to protect it when not in use. This protects your equipment from potential damage, ensuring excellent performance and longevity.
What’s max depth can Garrett Axiom detect?
The Garrett Axiom with MS-3 Wireless Headphones, 13″x11″ DD Coil, and 11″x7″ Mono Coil is a high-performance Pulse Induction (PI) gold detector, and its maximum detection depth depends on several factors — such as target size, ground mineralization, and coil selection.
Approximate Maximum Detection Depths:
Small gold nuggets (0.1 – 0.5 grams):
Up to 6–10 inches (15–25 cm)
Medium targets (coin to large nugget size):
Up to 2–3 feet (60–90 cm)
Large deep targets (e.g., gold bars, large relics):
Up to 5+ feet (1.5+ meters), especially in low mineralized ground using the 13″x11″ DD coil or an optional larger coil.
Key Depth-Enhancing Features:
Ultra-Pulse™ PI Technology provides superior depth in mineralized soil.
Mono coils are ideal for depth and sensitivity to small targets.
DD coils help with stability and ground coverage, especially in high mineralization.
Depth results may vary in the field. For maximum performance, proper ground balancing and coil choice are essential.
DD coil vs Mono coil ?
DD (Double-D) Coil
Design: Two overlapping D-shaped windings
Pros:
- Better ground balance in highly mineralized soils
- Excellent target separation
- Stable performance in wet, salty, or variable ground
- More consistent depth across the coil width
Cons:
- Slightly less depth than mono coils
- Heavier due to coil structure
Best for:
- Mineralized soils (like red dirt or black sand)
- Saltwater beaches
- Areas with lots of trash or hot rocks
Mono Coil
Design: A single loop winding — uses the whole coil to transmit and receive
Pros:
- Deeper detection than DD coils
- More sensitive to small gold nuggets
- Lighter in weight
Cons:
- Less stable in mineralized ground
- Can produce more false signals if not well ground-balanced
Best for:
- Clean, low-mineralization environments
- Areas where maximum depth is a priority
- Hunting larger targets at depth
Final Tip:
- Use DD coil when the soil is unpredictable or mineralized.
- Use Mono coil when you want max depth and are confident in ground balancing.
